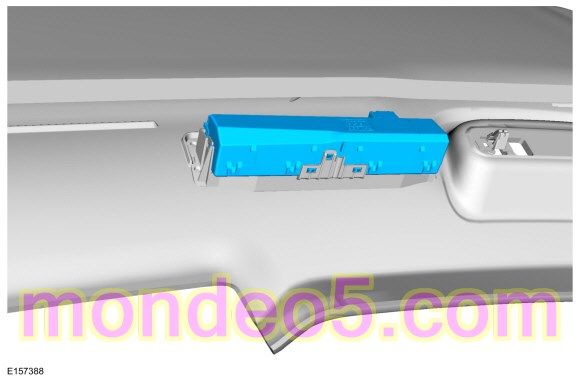

Radio Transceiver Module (RTM)

Removal

NOTICE: Use care to not crease the headliner during removal and installation or damage to the headliner can occur.

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

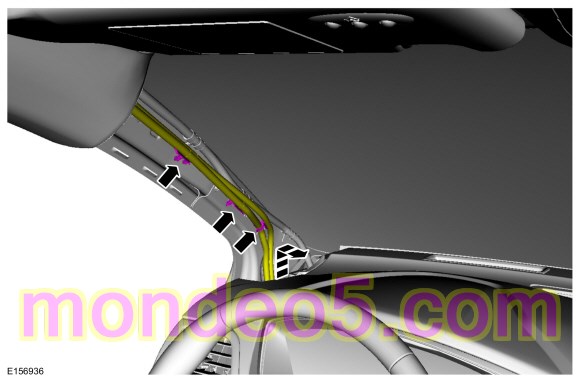

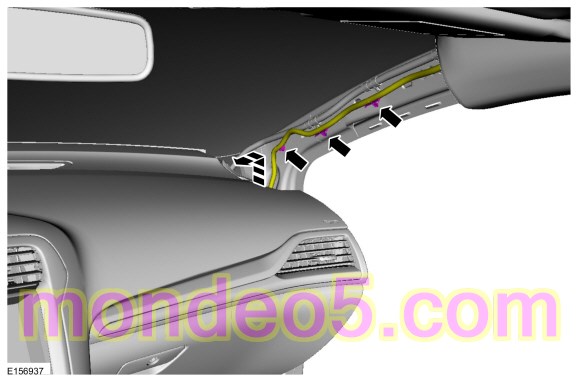

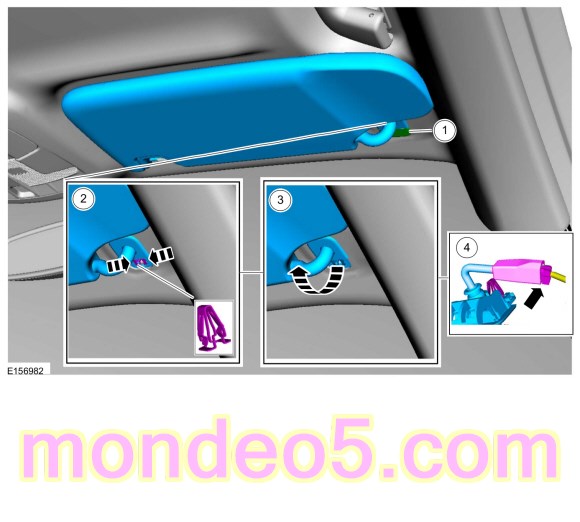

1. On both sides.
   Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


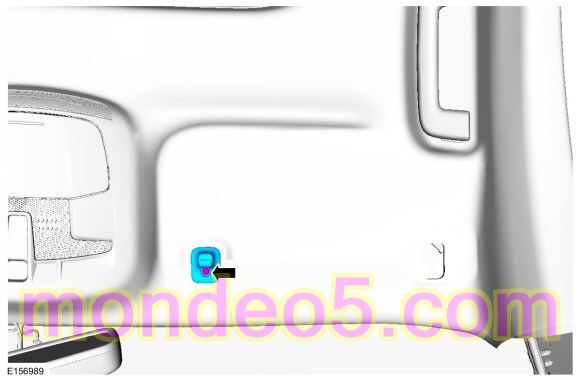

1. NOTE: Vehicle with roof opening panel shown, vehicle without roof opening panel similar.

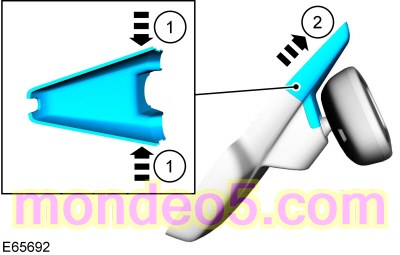

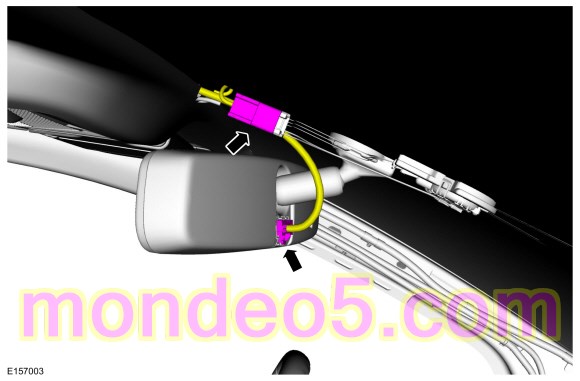

1. Vehicles equipped with rain sensing wipers.


1. On both sides.
   Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


1. On both sides.
   Refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


1. If equipped.


1. If equipped.


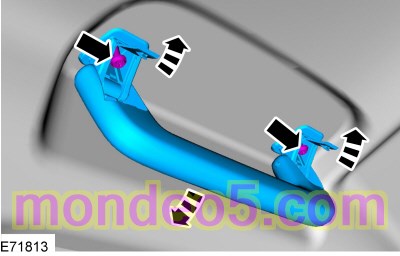

1. NOTE: RH side shown, LH side similar.

   On both sides.


1. NOTE: RH side shown, LH side similar.

   On both sides.


1. All.

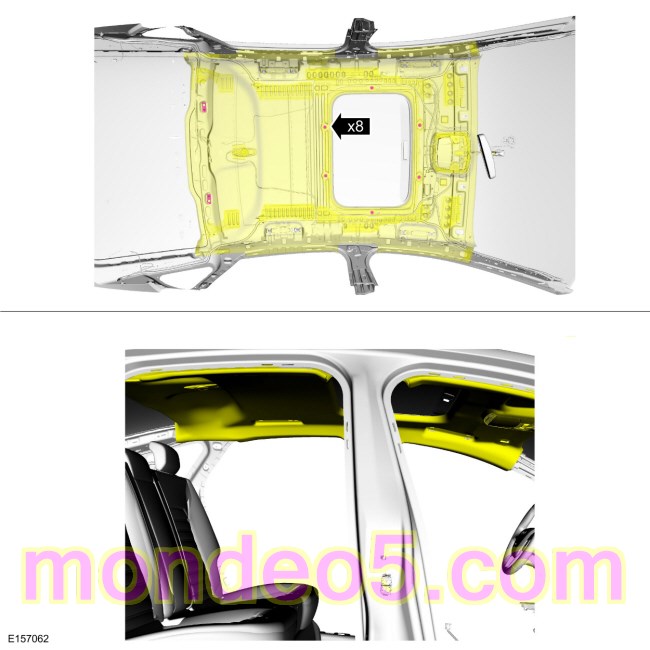

1. On vehicles equipped with roof opening panel, release the eight magnet headliner fasteners.


Installation

1. NOTE: Transfer parts as necessary.

   To install, reverse the removal procedure.


1. NOTE: This step is only necessary when installing a new component.

   Using a diagnostic scan tool, complete the PMI process for the RTM following the on-screen instructions.
