501-05 Interior Trim and Ornamentation 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 08/29/2012

B-Pillar Trim Panel

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

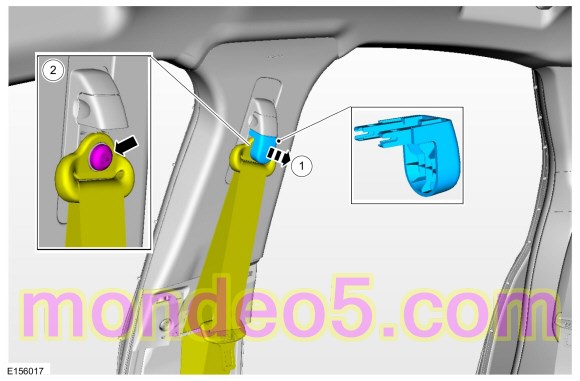

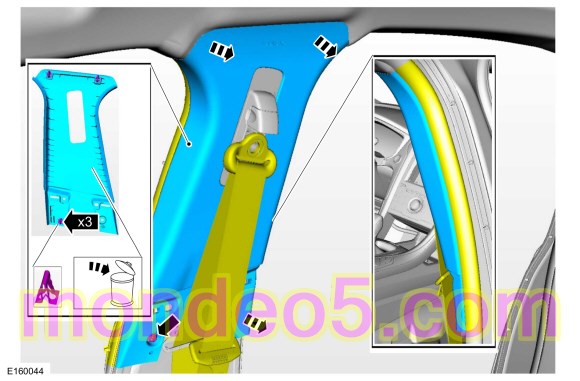

  1. NOTE: During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

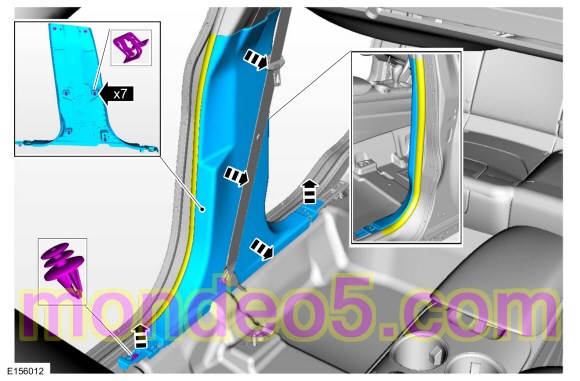

    Torque : 40 Nm

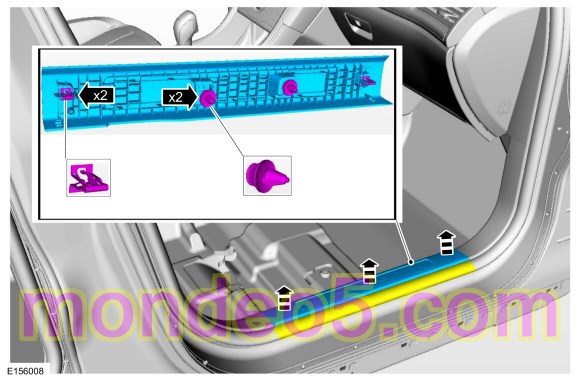

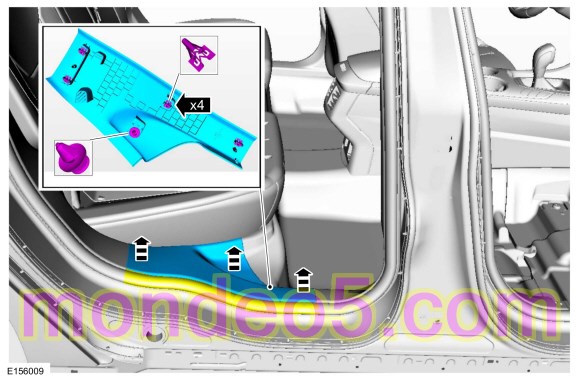

  1. Torque : 9 Nm

Installation

  1. To install, reverse the removal procedure.


Copyright © Ford Motor Company
