C-Pillar Upper Trim Panel

Removal

NOTE: RH side shown, LH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: C-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


1. Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

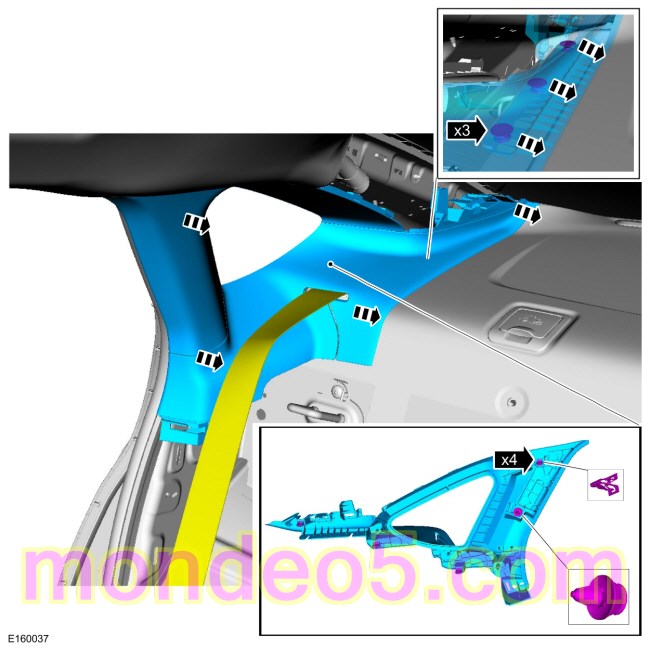

1. NOTE: During installation make sure the upper C-pillar trim panel is fully engaged onto the three retainers located on the parcel shelf.

Installation

1. To install, reverse the removal procedure.
