Ignition Lock Cylinder Housing

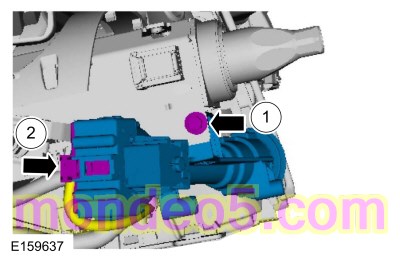

Removal

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Steering Column Control Module (SCCM) (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).


Installation

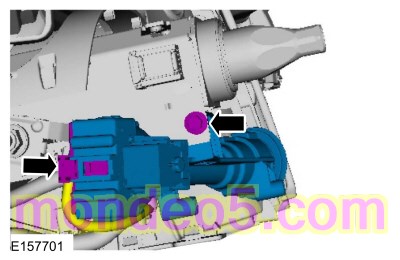

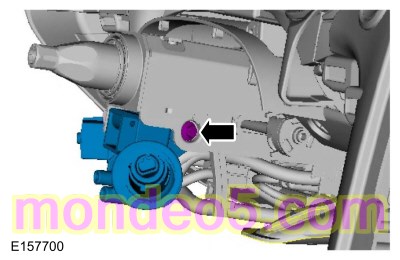

NOTICE: The ignition lock cylinder housing bolts must be tightened in the order of the following steps. Otherwise, binding of the ignition cylinder and ignition switch may occur.

1. Refer to: Steering Column Control Module (SCCM) (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).
