414-02 Generator and Regulator 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 05/31/2013

Generator - 2.5L Duratec (125kW/170PS)

Removal

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

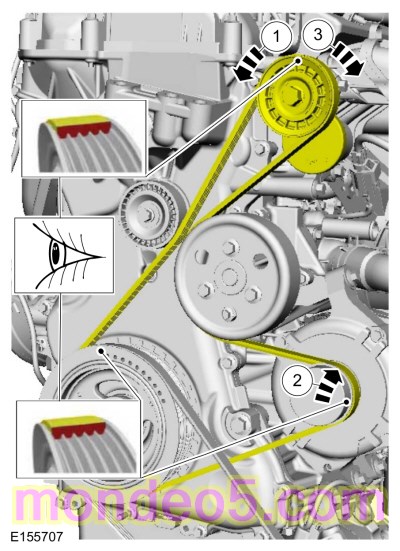

  1. Refer to: Air Conditioning (A/C) Compressor Belt (303-05D Accessory Drive - 2.5L Duratec (125kW/170PS), Removal and Installation).

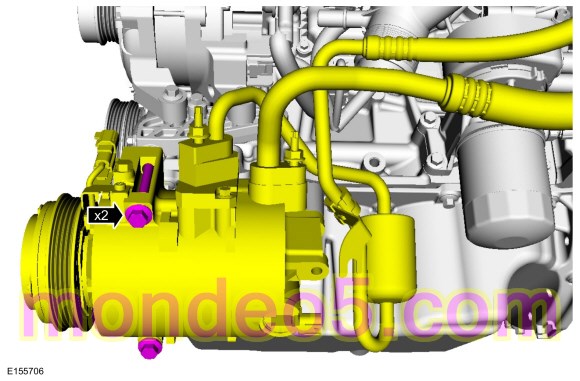

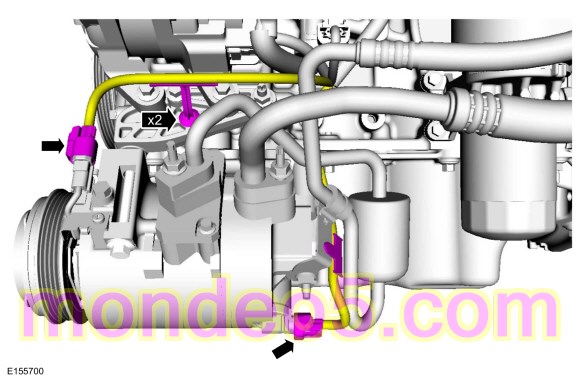

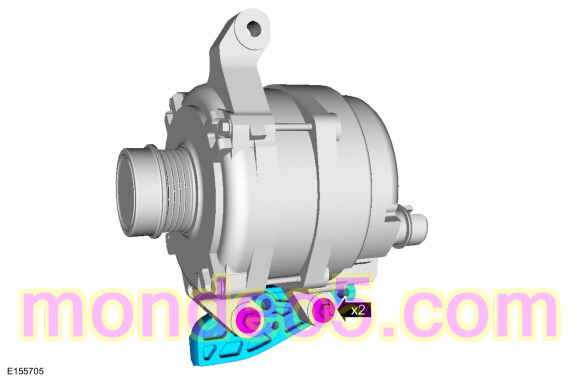

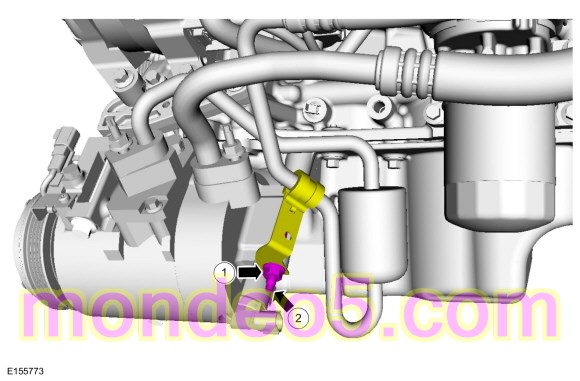

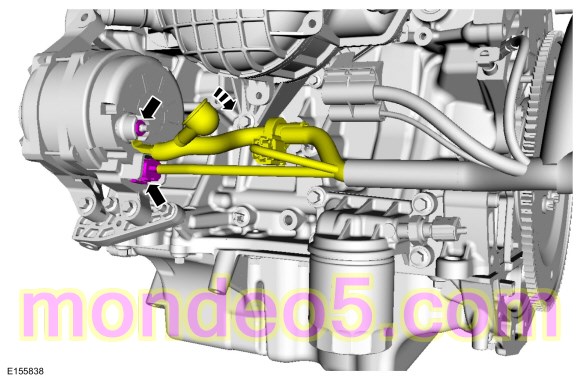

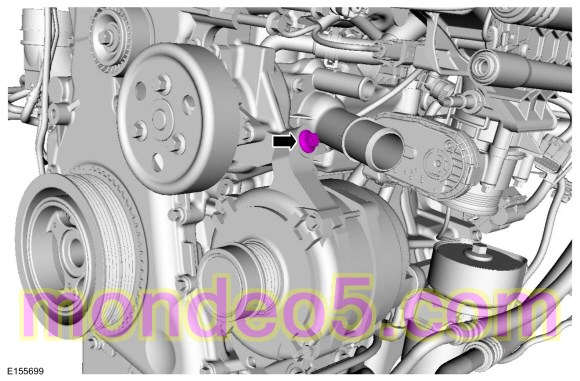

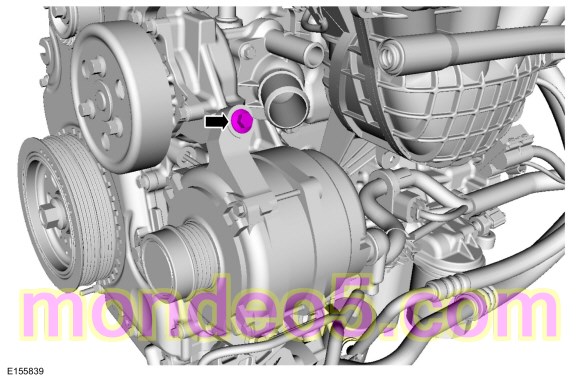

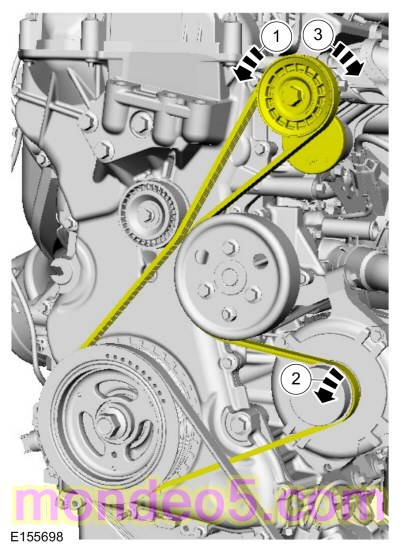

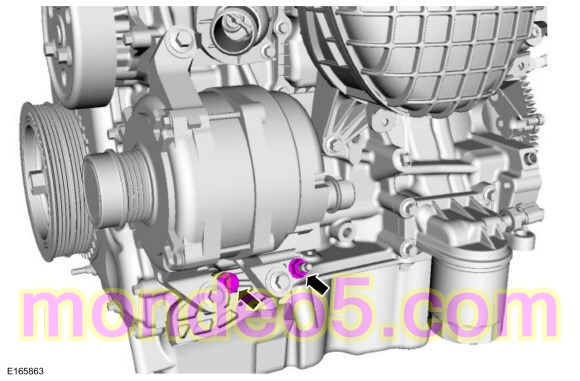

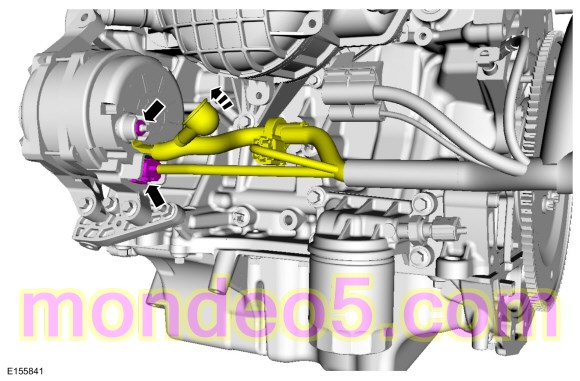

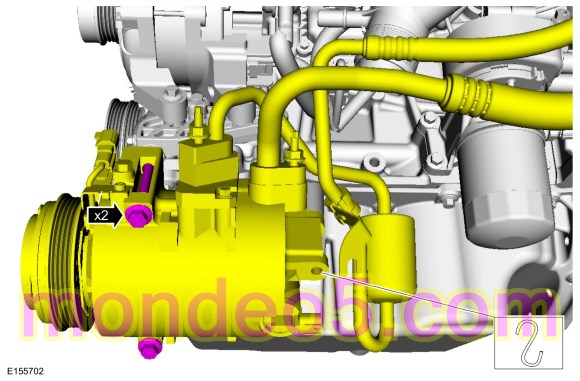

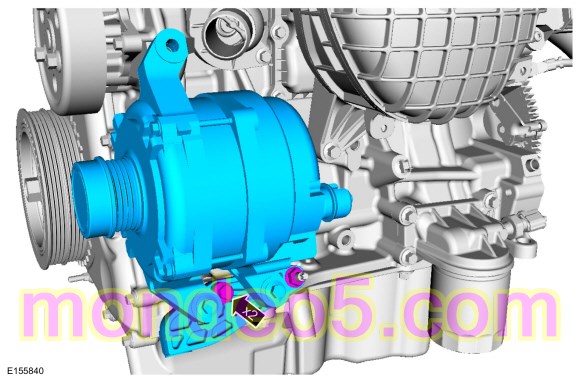

  1. NOTE: This step is only necessary when installing a new component.

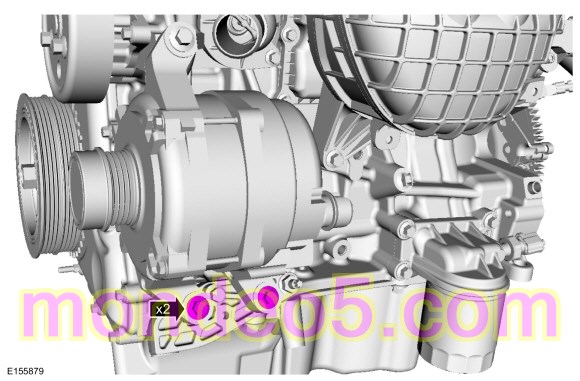

Installation

  1. NOTE: This step is only necessary when installing a new component.

    If removed, finger-tight.
  1. Finger-tight.
  1. Finger-tight.
    1. Torque : 25 Nm
  1. Torque : 25 Nm
  1. If removed.
    Torque : 25 Nm
  1. Torque : 15 Nm
  1. Torque : 25 Nm
    1. Torque : 9 Nm
    1. Torque : 25 Nm
  1. Refer to: Air Conditioning (A/C) Compressor Belt (303-05D Accessory Drive - 2.5L Duratec (125kW/170PS), Removal and Installation).
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
