206-09 Anti-Lock Brake System (ABS) and Stability Control 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 07/8/2013

Anti-Lock Brake System (ABS) Module - Vehicles Built From: 20-May-2013

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI PMI process for the ABS module following the onscreen instructions.
  1. Refer to: Hydraulic Control Unit (HCU) (206-09 Anti-Lock Brake System (ABS) and Stability Control, Removal and Installation).

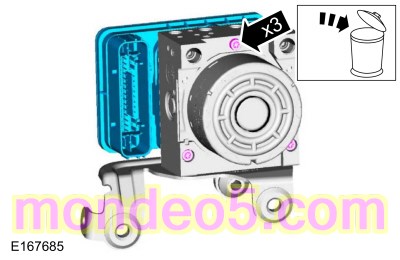

  1. NOTICE: Make sure the HCU and ABS module are clean and free of any brake fluid or foreign material before separating the components. Do not allow any brake fluid or foreign material to enter the mating side of the ABS module or component damage can occur.

Installation

  1. To install, reverse the removal procedure.

  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI PMI process for the ABS module following the onscreen instructions.
