Rear Wheel Speed Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


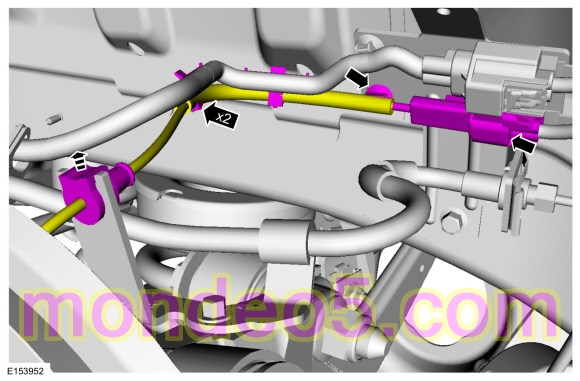

1. NOTICE: Route the wheel speed sensor harness as shown or contact with the wheel speed sensor may occur causing damage to harness.

   NOTE: Use the white stripe on rear wheel speed sensor harness for orientation purposes, making sure the harness is not twisted during installation.

Vehicles with knuckle mounted wheel speed sensor

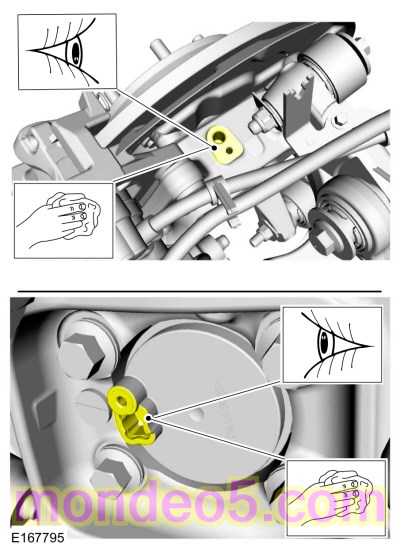

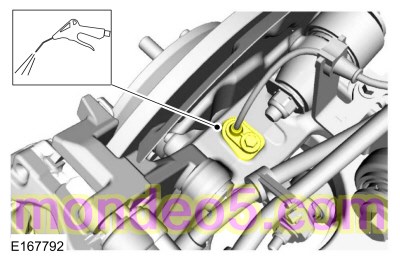

1. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

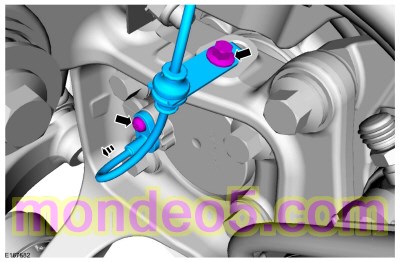

1. Torque : 9 Nm

Vehicles with bearing mounted wheel speed sensor

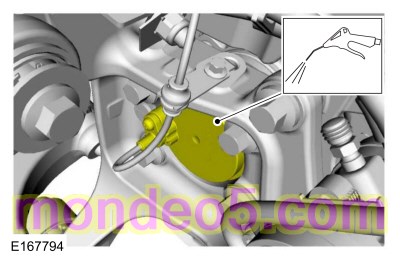

1. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

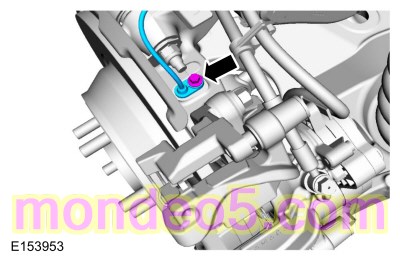

1. Torque :
   Wheel speed sensor harness bracket bolt   9 Nm
   Wheel speed sensor bolt   5.4 Nm

Installation

1. NOTICE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur.

1. To install, reverse the removal procedure.
