412-00 Climate Control System - General Information 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 01/30/2013

Cabin Heater Coolant Pump - 1.6L EcoBoost (132kW/180PS) - Sigma

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

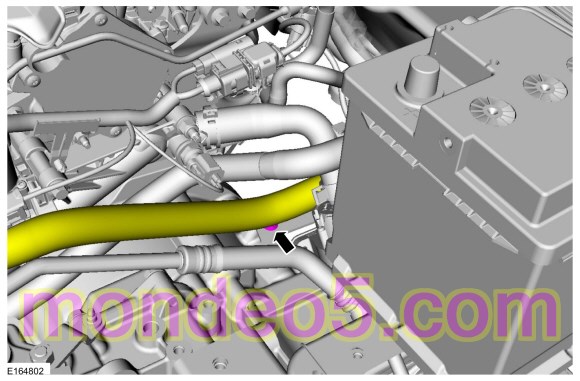

  1. Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma, Removal and Installation).

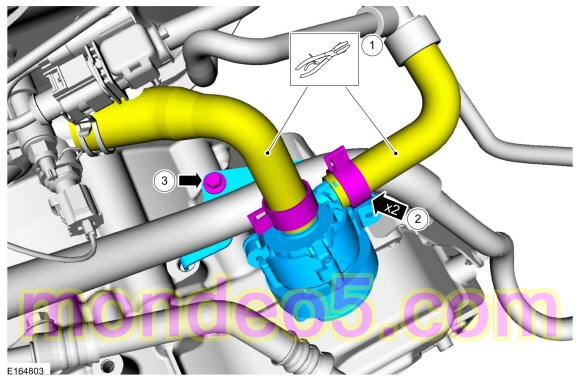

    1. General Equipment : Hose Clamp(s)
    1. Torque : 10 Nm

Installation

  1. To install, reverse the removal procedure.
  1. Refer to: Cooling System Draining and Vacuum Filling (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) - Sigma, General Procedures).
