Passenger Door Module (PDM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. NOTE: This step is necessary only if the PDM is being replaced.

   NOTE: Prior to the replacement of the module, it is necessary to upload the module configuration information to the diagnostic scan tool. This information must be downloaded into the new module after installation.

   Upload the module configuration information from the PDM .
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).


1. Remove the passengers door interior trim panel.
   Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


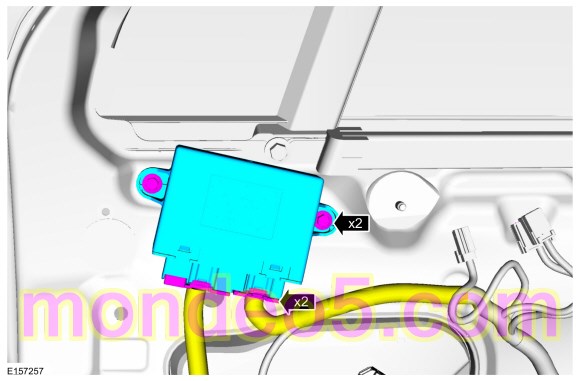

1. Torque : 5 Nm

Installation

1. To install, reverse the removal procedure.


1. NOTE: This step is necessary only if the PDM is being replaced.

   Download the module configuration information from the diagnostic scan tool.
