Solenoid

Removal

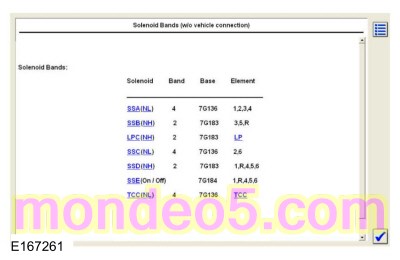

1. Using the scan tool Transmission Solenoid Identification Number (IDN) function, retrieve the solenoid base part number and stamping number.


1. Refer to: Transmission Internal Wiring Harness Frame (307-01 Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal and Installation).


1. NOTICE: The solenoids are calibrated from the factory and are not all the same. Failure to install the solenoids in the ports they were originally in can result in damage to the transmission or a harsh shift.

   NOTE: Note the position of the component before removal.

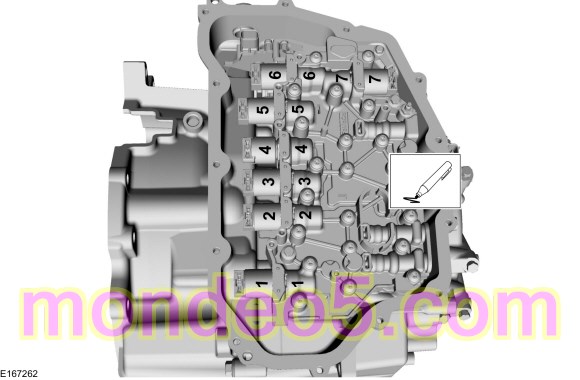

   1. Line Pressure Control (LPC) solenoid 7G383 (high variable bleed)

   2. Shift Solenoid C (SSC) 7G136 (low variable bleed)

   3. TCC solenoid 7G136 (low variable bleed)

   4. Shift Solenoid E (SSE) 7G484 (normally closed [OFF])

   5. Shift Solenoid A (SSA) 7G136 (low variable bleed)

   6. Shift Solenoid B (SSB) 7G383 (high variable bleed)

   7. Shift Solenoid D (SSD) 7G383 (high variable bleed)


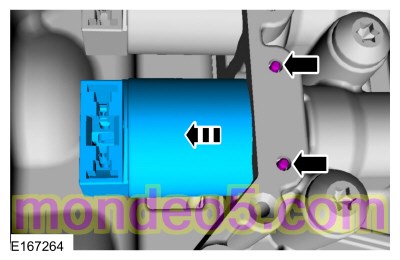

1. General Equipment : Long Nose Pliers

Installation

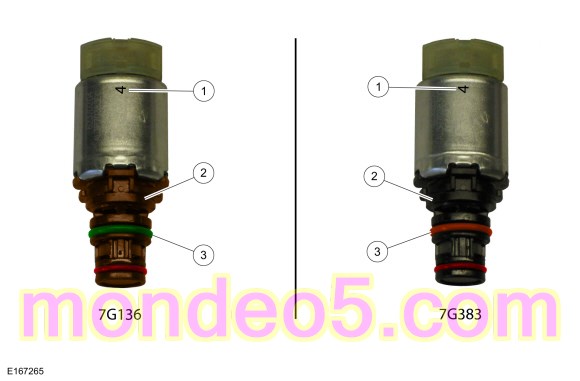

1. NOTE: Verify replacement component matches original component:

   1. Number

   2. Color

   3. Color


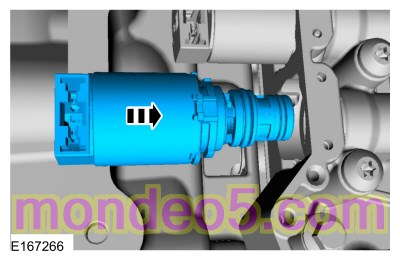

1. NOTE: Make sure the component is installed in the position noted before removal.

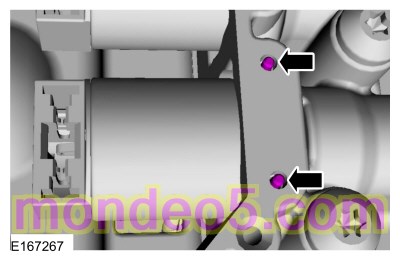

1. Refer to: Transmission Internal Wiring Harness Frame (307-01 Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal and Installation).
