Brake Vacuum Pump - 1.6L EcoBoost (132kW/180PS) - Sigma

Removal

NOTE: Removal steps in this procedure may contain installation details.

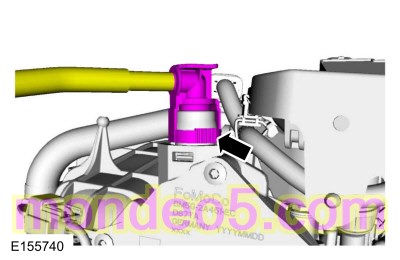

1. Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma, Removal and Installation).


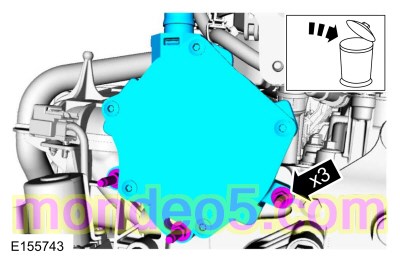

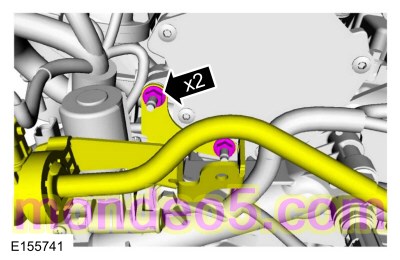

1. Torque : 10 Nm

1. Torque : 10 Nm

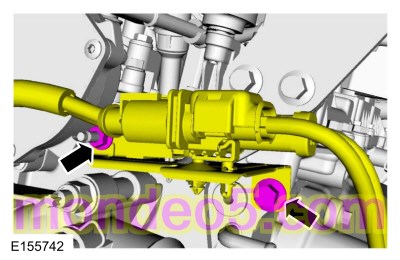

1. Torque : 10 Nm

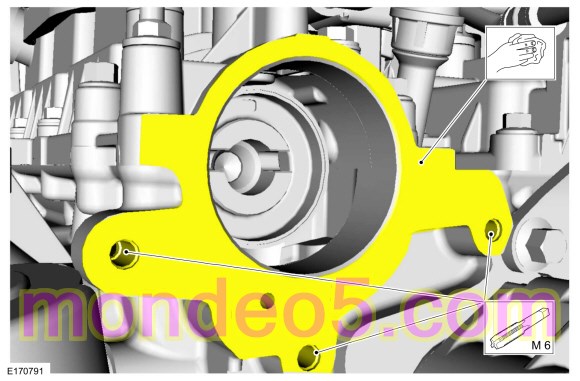

1. NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.

Installation

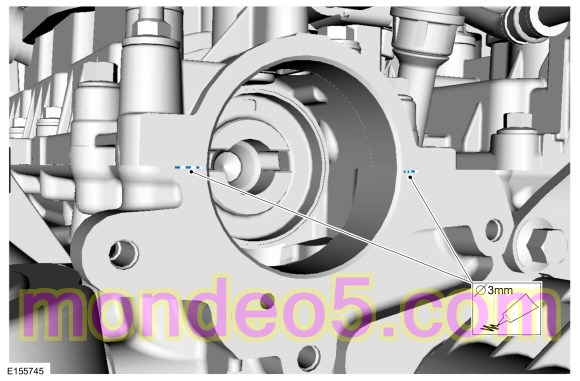

1. NOTICE: If the brake vacuum pump is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Failure to follow this procedure can cause future oil leakage.

   Material : Gasket Maker / TA-16 (WSK-M2G348-A5)

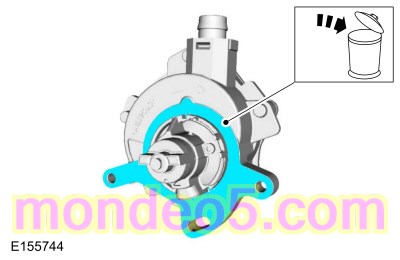

1. NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

   To install, reverse the removal procedure.
