211-05 Steering Wheel and Column Electrical Components 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 08/28/2012

Ignition Switch

Removal

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

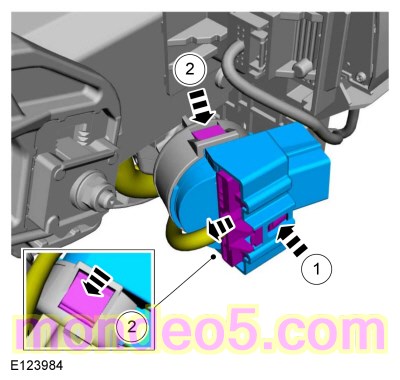

  1. NOTICE: The ignition switch lock cylinder must not be turned while the ignition switch is removed. Otherwise, damage to the ignition switch may occur upon installation.

Installation

  1. To install, reverse the removal procedure.
