211-04 Steering Column 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 09/12/2012

Steering Wheel

Removal

NOTICE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).

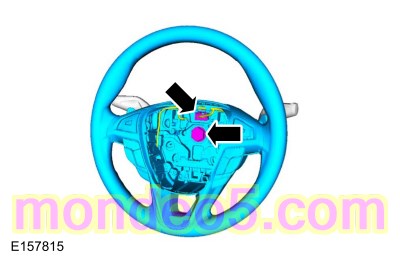

  1. Torque : 48 Nm

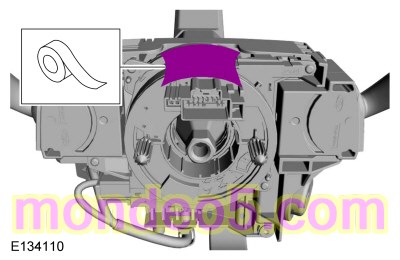

  1. NOTE: Make sure the clockspring rotor does not rotate.

    NOTE: Make sure the clockspring pins are not bent or damaged.

Installation

  1. To install, reverse the removal procedure.
