Generator Current Sensor

Removal

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


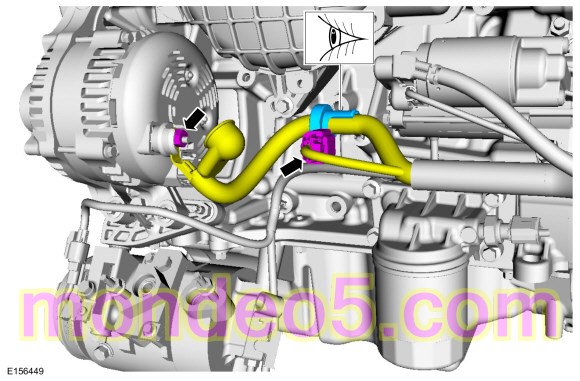

1. NOTE: 2.5L shown, other engines similar.

   NOTE: Note the orientation and position of the generator current sensor tape tab.

   Index-mark the battery cable at the generator current sensor. Remove and discard the tape securing the generator current sensor to the battery cable and remove the generator current sensor.


Installation

1. NOTE: 2.5L shown, other engines similar.

   NOTE: The generator current sensor must be installed in the proper position and orientation to function correctly.

   With the generator current sensor tape tab pointing away from the generator, position the generator current sensor to the index-mark on the battery cable and secure with electrical tape.
   Torque : 17 Nm

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
