414-02 Generator and Regulator 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 11/28/2012

Generator - 2.0L EcoBoost (184kW/250PS) - MI4

Removal

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  1. Refer to: Air Conditioning (A/C) Compressor Belt (303-05C Accessory Drive - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).

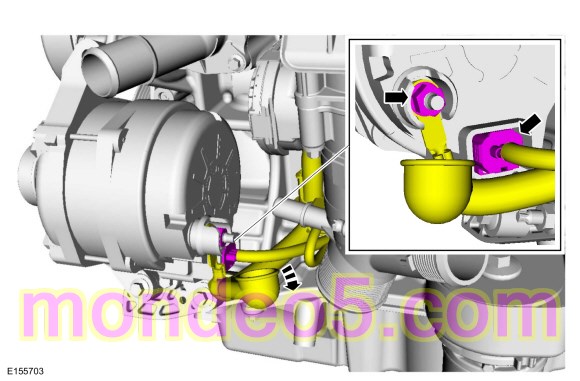

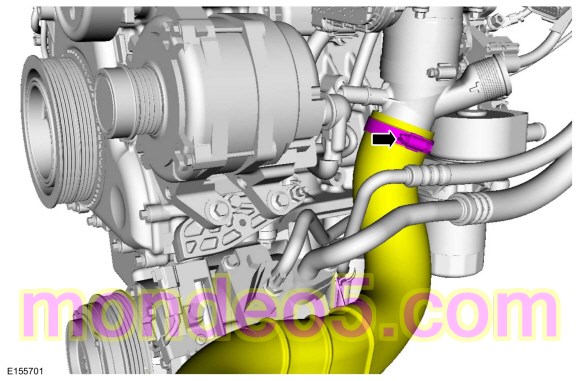

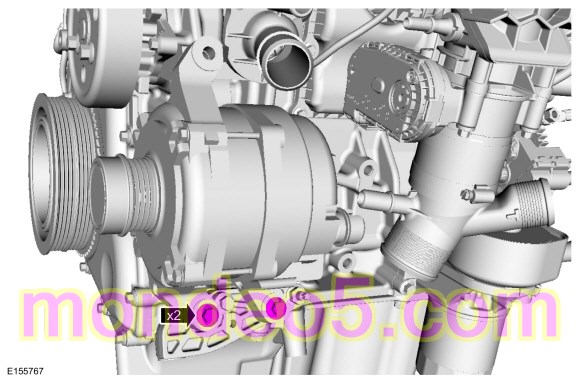

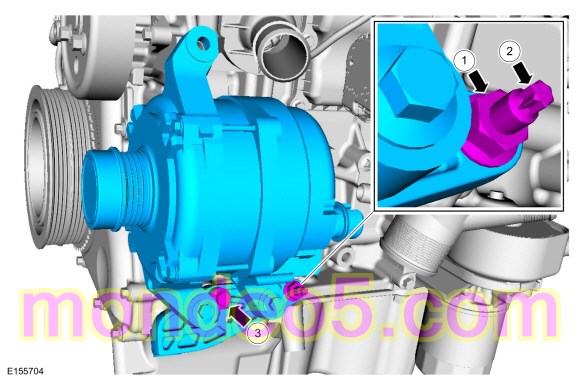

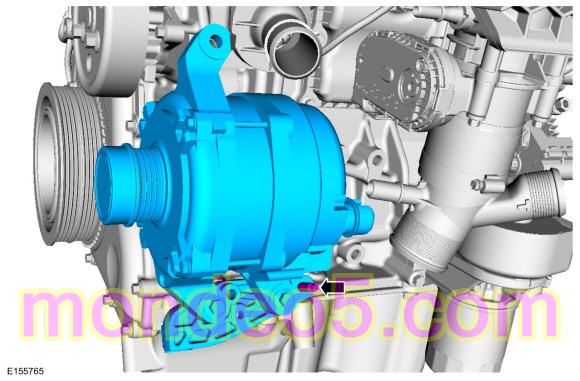

  1. NOTE: This step is only necessary when installing a new component.

Installation

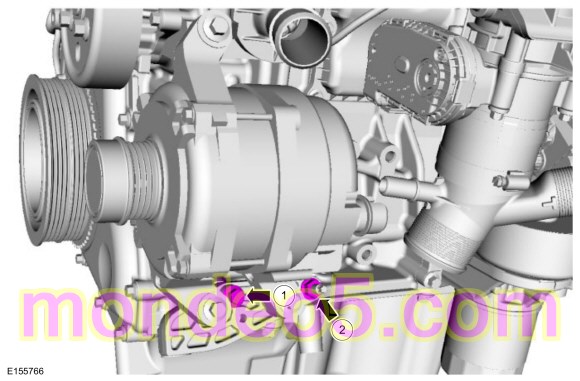

  1. NOTE: This step is only necessary when installing a new component.

    If removed, finger-tight.
  1. Torque : 7 Nm
  1. Finger-tight.
    1. Torque : 25 Nm
    1. Torque : 25 Nm
  1. Torque : 25 Nm
  1. If removed.
    Torque : 25 Nm
  1. Torque : 17 Nm
  1. Torque : 25 Nm
  1. Torque : 5 Nm

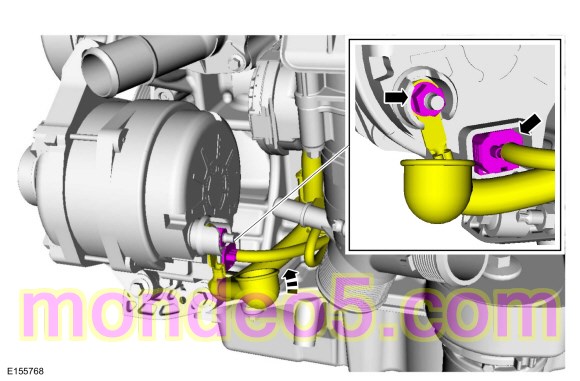

    1. Torque : 9 Nm
    1. Torque : 25 Nm
  1. Refer to: Air Conditioning (A/C) Compressor Belt (303-05C Accessory Drive - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


Copyright © Ford Motor Company
