414-02 Generator and Regulator 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 11/28/2012

Generator - 1.6L EcoBoost (132kW/180PS) - Sigma

Removal

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

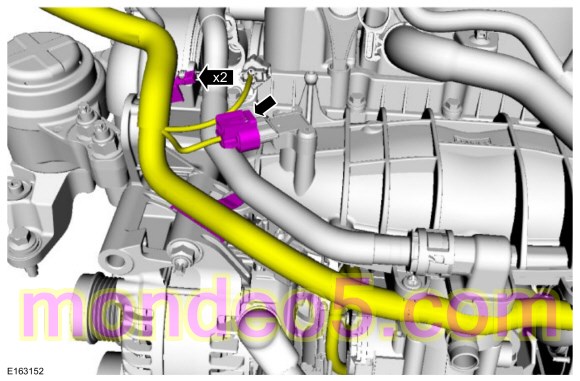

Vehicles with Auto-Start-Stop System

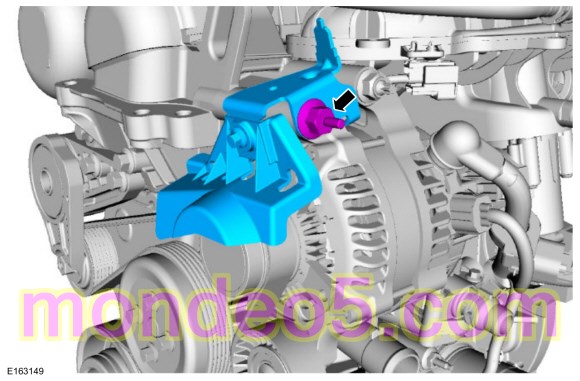

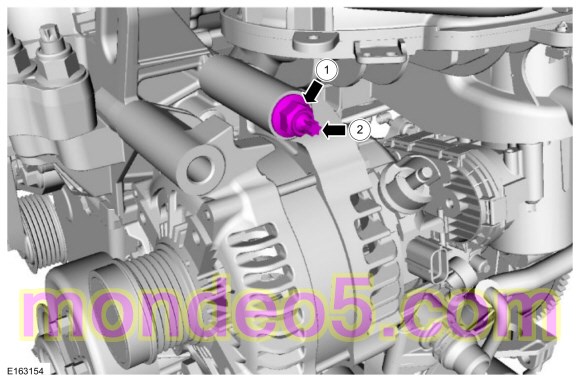

  1. Torque : 15 Nm

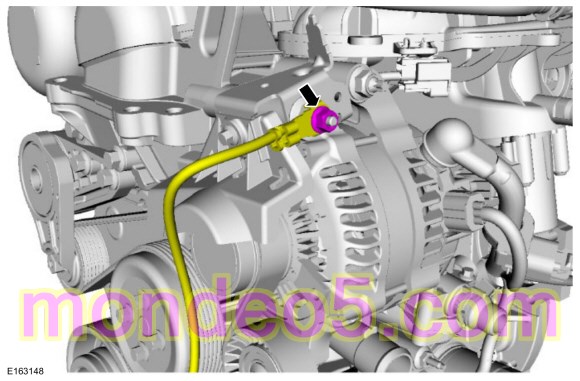

  1. Torque : 48 Nm

Vehicles without Auto-Start-Stop System

  1. Torque : 15 Nm
  1. Torque : 48 Nm

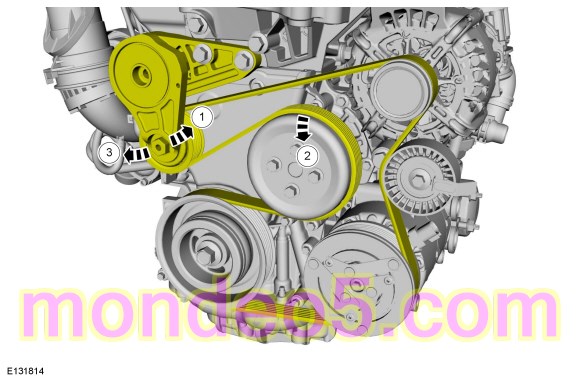

All vehicles

  1. Torque : 15 Nm

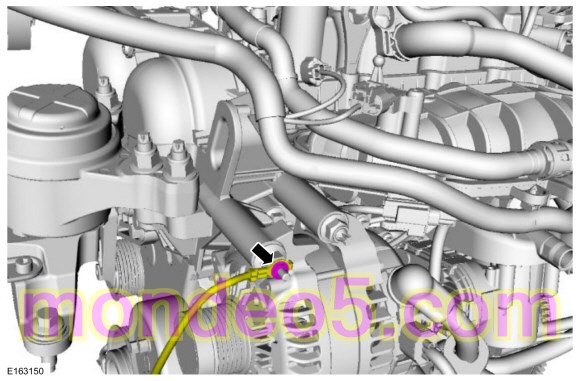

    1. Torque : 48 Nm

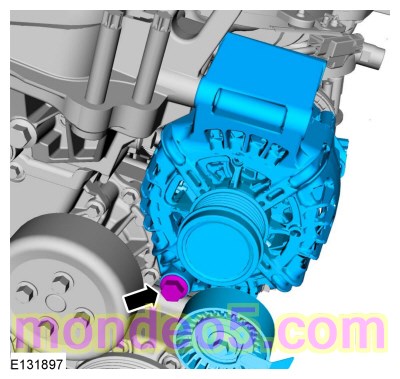

    1. Torque : 10 Nm

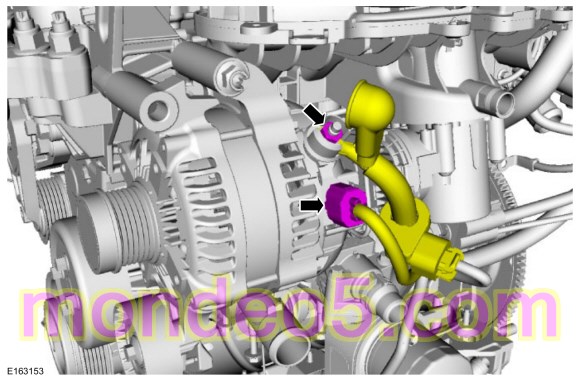

  1. Torque : 48 Nm

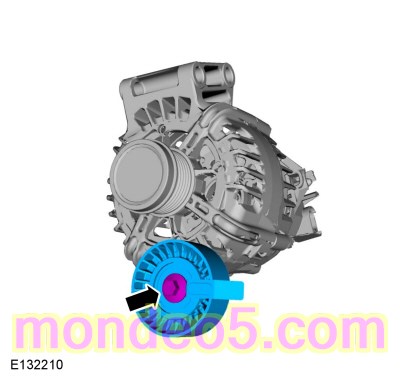

  1. NOTE: This step is only necessary when installing a new component.

    Torque : 25 Nm

Installation

  1. To install, reverse the removal procedure.
