Transmission Range (TR) Sensor

Removal

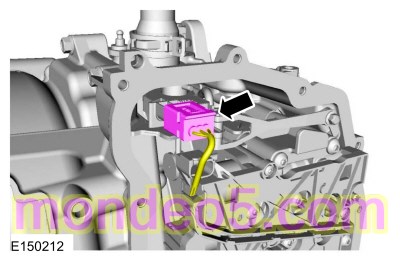

1. Refer to: Main Control Cover (307-01A) .


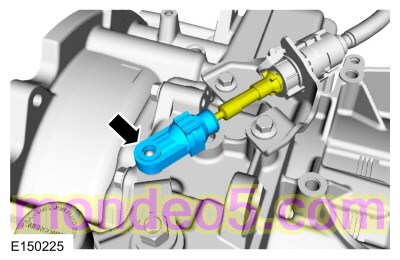

1. NOTICE: Do not drive the manual control shaft pin through the manual control shaft. The manual control shaft pin will contact the transmission case causing damage to the transmission case.

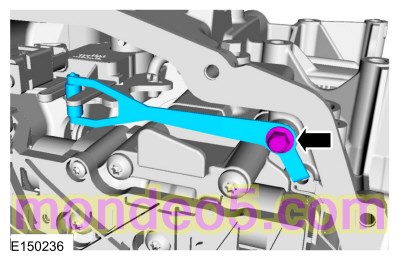

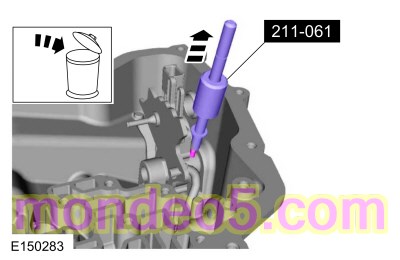

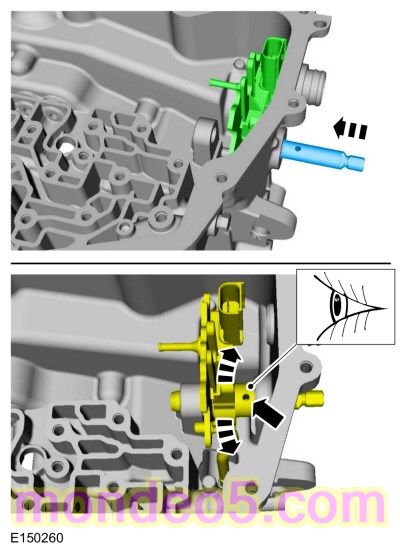

   Special Tool(s) : 211-061 (T78P-3504-N1) Remover, Roll Pin

Installation

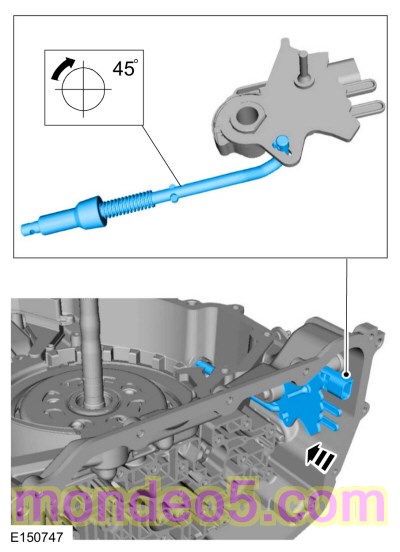

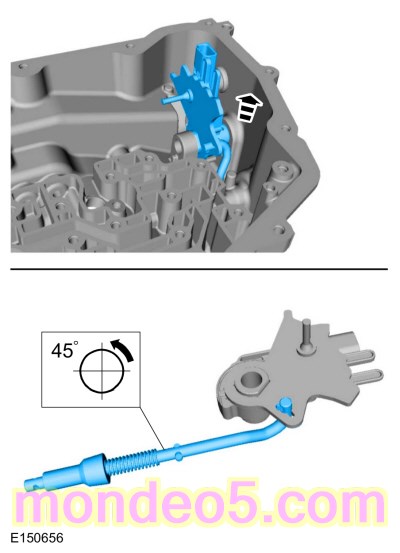

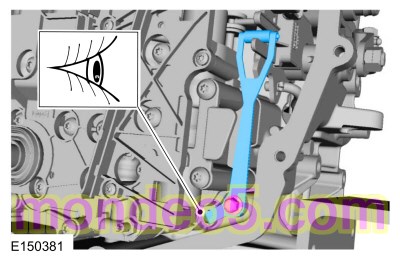

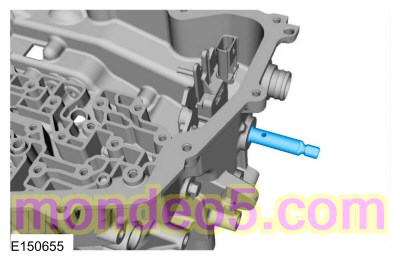

1. Align the manual control shaft pin holes.


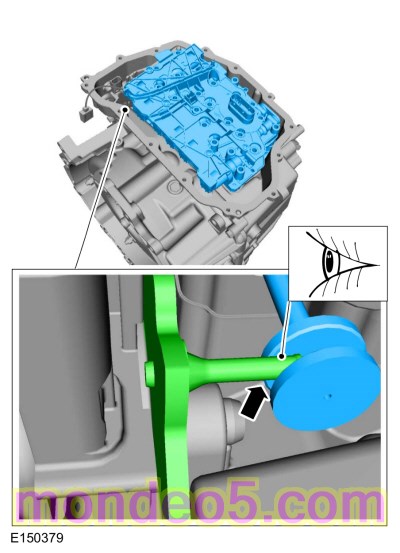

1. NOTE: Be sure that the TR sensor manual pin is correctly installed in the manual valve.

1. General Equipment : Punch

1. Alignment tab in the alignment hole.
   Torque : 13 Nm

1. Refer to: Main Control Cover (307-01A) .

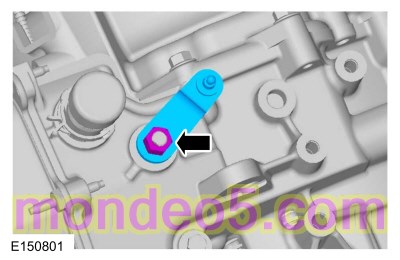

1. NOTICE: Make sure that when installing the manual control lever it is fully seated onto the manual control lever shaft or damage to the manual control lever shaft will occur and the lever will come loose.

   NOTICE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

   Torque : 24 Nm

1. Connect the selector lever cable end to the manual control lever with the manual control lever and selector lever in DRIVE. Check selector lever cable adjustment.
   Refer to: Selector Lever Cable Adjustment (307-05 Automatic Transmission External Controls, General Procedures).
