206-05 Parking Brake and Actuation 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 03/25/2013

Parking Brake Actuator Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

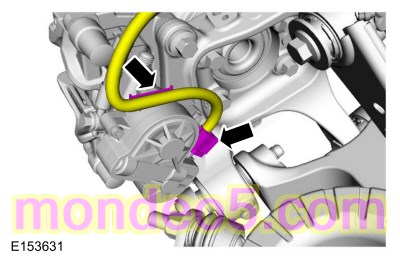

  1. NOTE: If there is eveidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

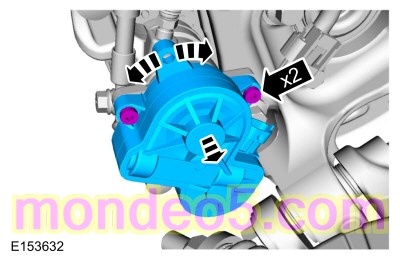

    Torque : 8 Nm

Installation

  1. NOTE: Make sure to use the grease and new bolts supplied with the parking brake actuator motor kit.

    To install, reverse the removal procedure.
