Battery Cables - 1.6L EcoBoost (132kW/180PS) - Sigma

Removal

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


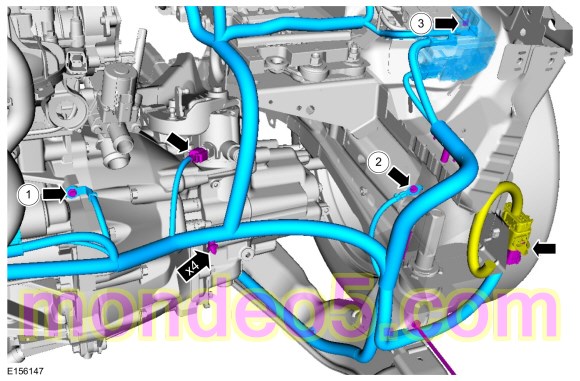

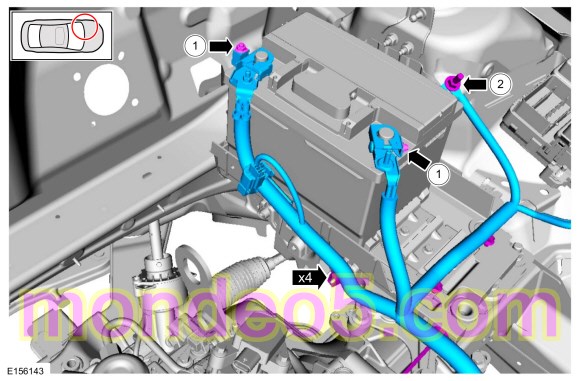

Vehicles without Auto-Start-Stop System

1. 1. Torque : 5 Nm
   2. Torque : 12 Nm

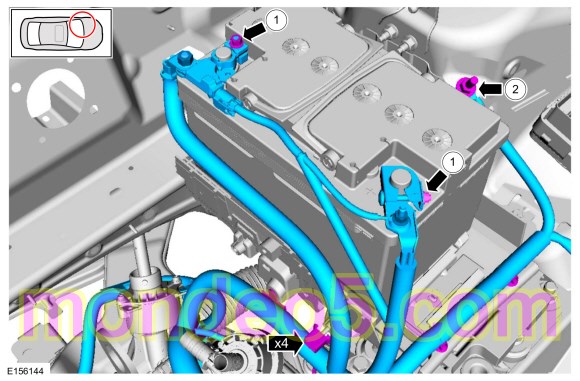

Vehicles with Auto-Start-Stop System

1. 1. Torque : 5 Nm
   2. Torque : 12 Nm

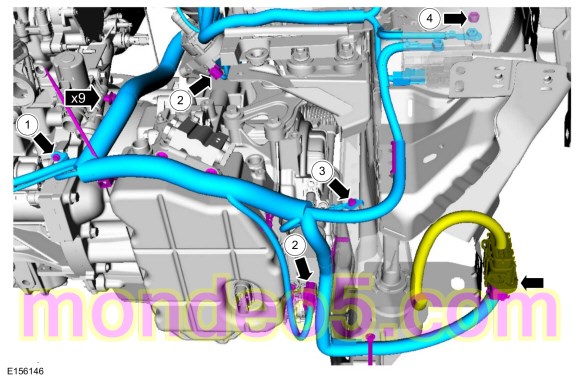

All vehicles

1. 1. Torque : 17 Nm
   2. Torque : 12 Nm
   3. Torque : 6 Nm

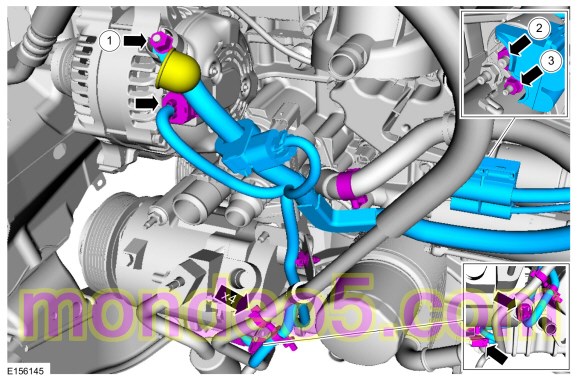

Vehicles with automatic transmission

1. 1. Torque : 15 Nm
   2. Vehicles with Auto-Start-Stop System

   3. Torque : 10 Nm
   4. Torque : 15 Nm

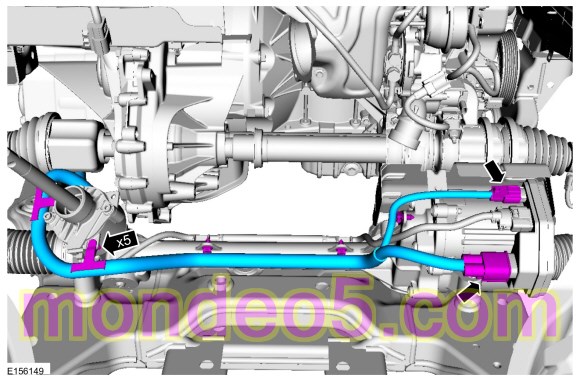

Vehicles with manual transmission

1. 1. Torque : 15 Nm
   2. Torque : 10 Nm
   3. Torque : 15 Nm

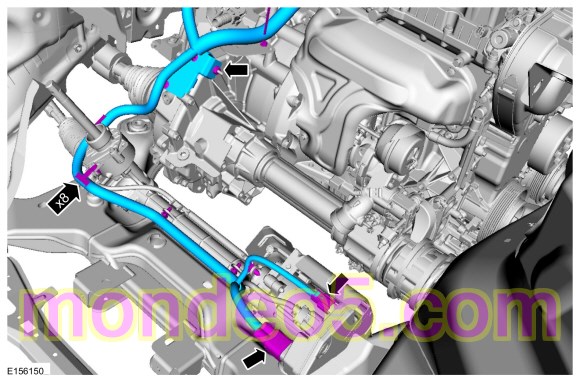

Vehicles with automatic transmission

1. • Torque : 12 Nm

Installation

1. To install, reverse the removal procedure.
