Air Conditioning (A/C) Compressor - 1.6L EcoBoost (132kW/180PS) - Sigma

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).


1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


1. Torque : 25 Nm

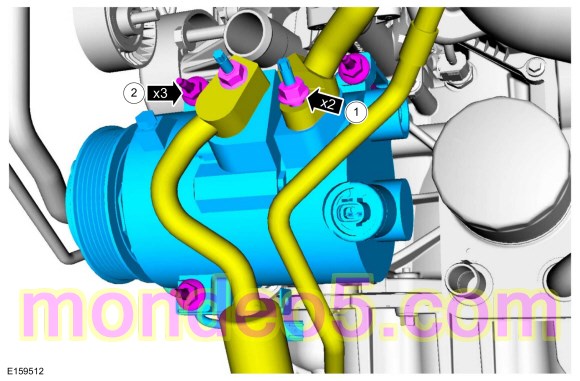

1. Torque :
   1.   15 Nm
   2.   25 Nm

Installation

1. To install reverse the removal procedure.


1. Refer to: Refrigerant Oil Adding (412-00 Climate Control System - General Information, General Procedures).
