Headlamp Bulb

Removal

NOTE: The procedure for the LH headlamp assembly is shown, the RH headlamp assembly is similar.

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

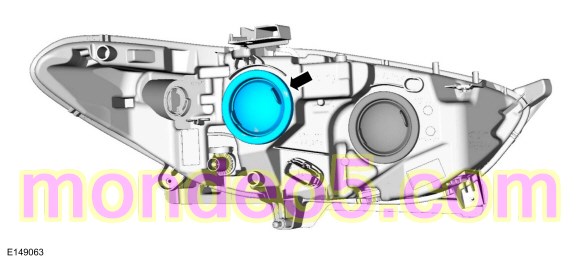

All Bulbs

1. NOTE: If equipped.

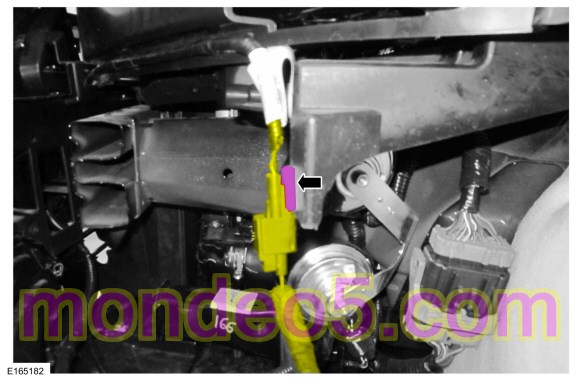

1. NOTE: LH headlamp assembly only.

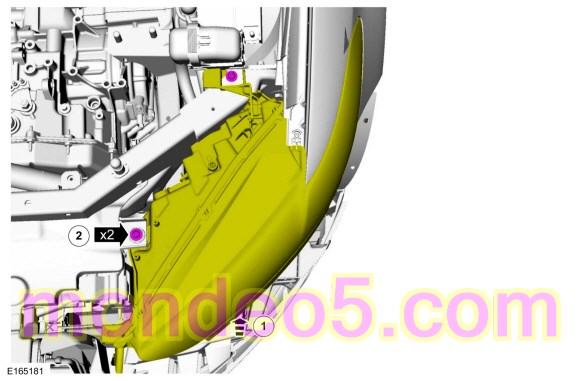

1. NOTE: When installing a new headlamp assembly, position the headlamp ballstud in the socket and align the headlamp assembly edge to the fender. If the headlamp assembly cannot be aligned adjust the ballstud socket.

   Torque : 3.6 Nm

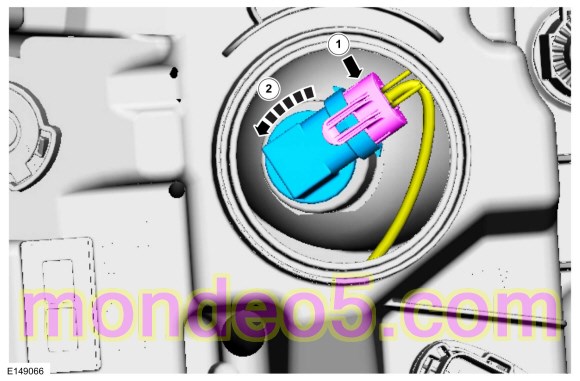

Low beam headlamp bulb

1. NOTE: The headlamp is shown removed for clarity.

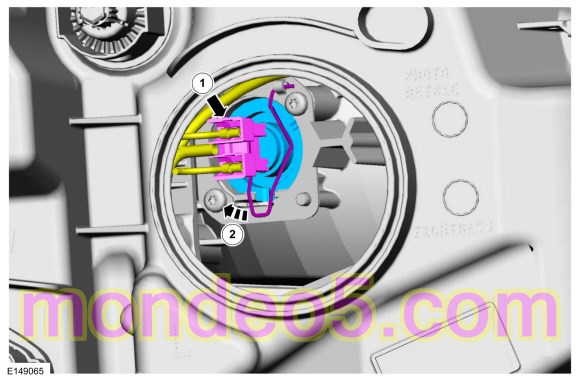

High beam headlamp bulb

1. NOTE: The headlamp is shown removed for clarity.

1. 1. Disconnect the electrical connector.

   2. Remove the high beam headlamp bulb.


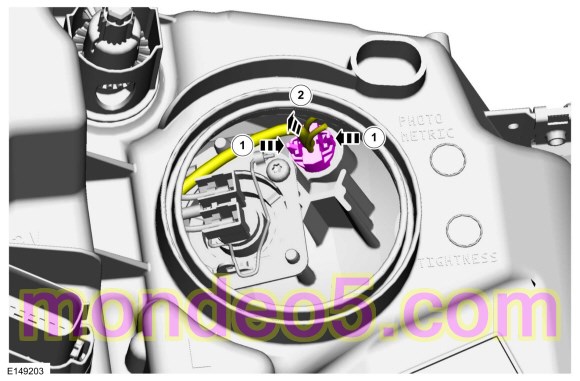

Parking lamp bulb

1. NOTE: The headlamp is shown removed for clarity.

Turn signal lamp bulb

1. NOTE: The headlamp is shown removed for clarity.

Installation

1. To install individual bulbs, reverse the removal procedure.


1. Align the headlamp assembly to the fender opening.


1. Torque : 3.6 Nm

1. NOTE: LH headlamp assembly only.

1. NOTE: If equipped.

1. Refer to: Headlamp Adjustment (417-01 Exterior Lighting, General Procedures).
