417-01 Exterior Lighting 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 02/4/2013

Headlamp Assembly

Removal

NOTE: The procedure for the LH headlamp assembly is shown, the RH headlamp assembly is similar.

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

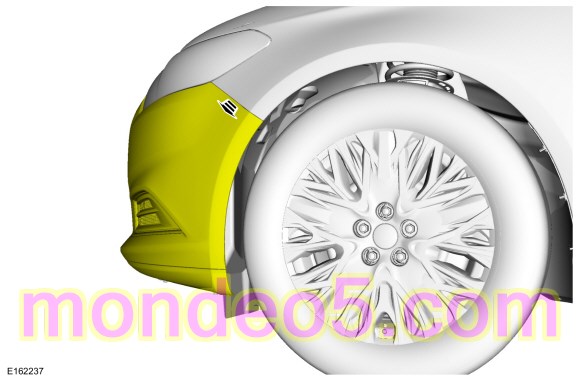

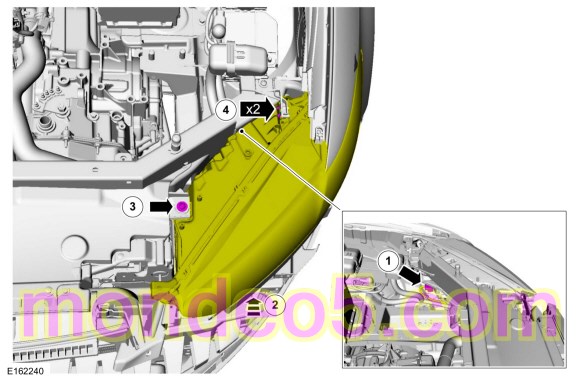

  1. NOTE: If equipped.

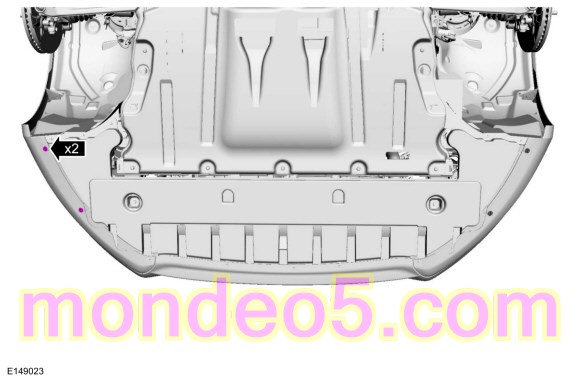

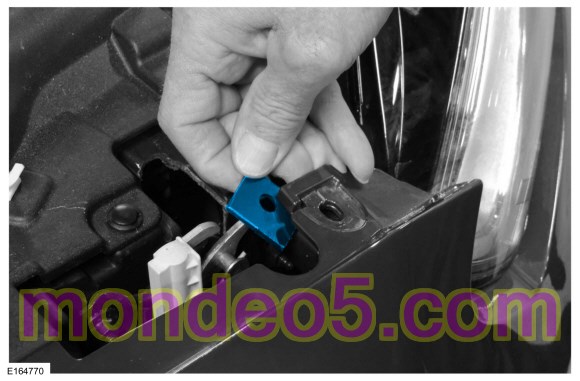

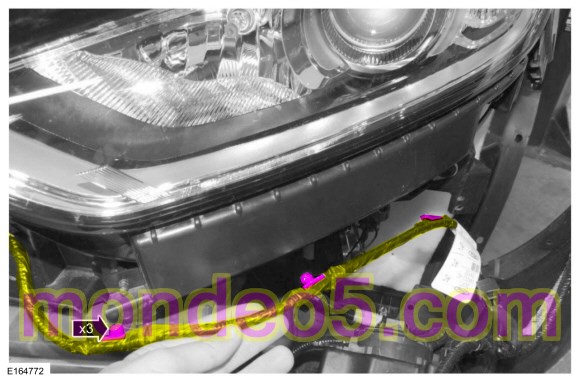

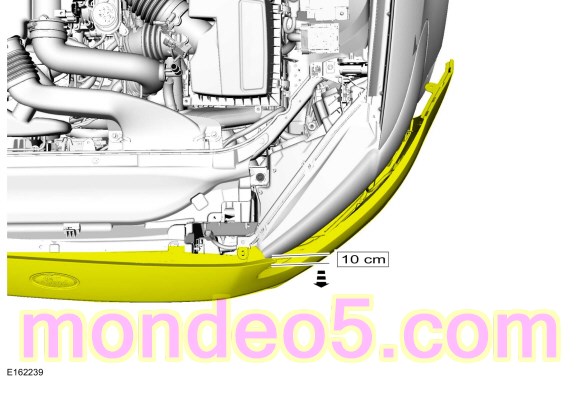

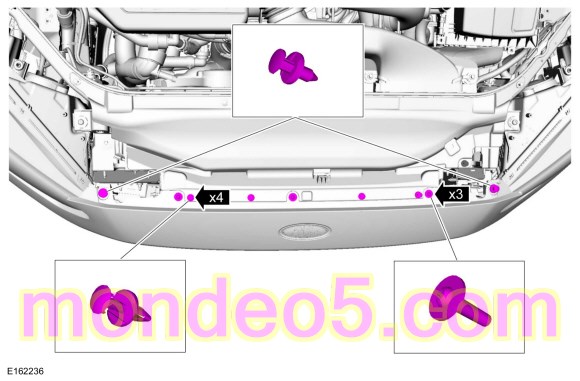

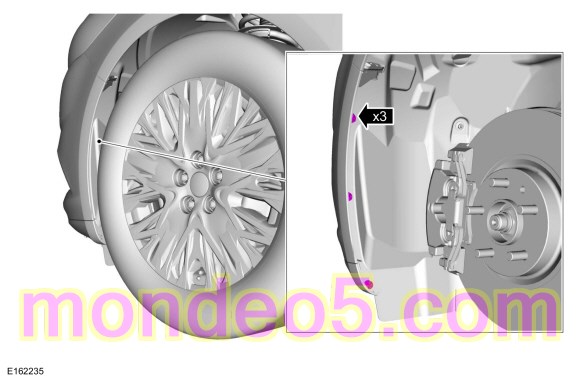

  1. NOTE: LH only.

Installation

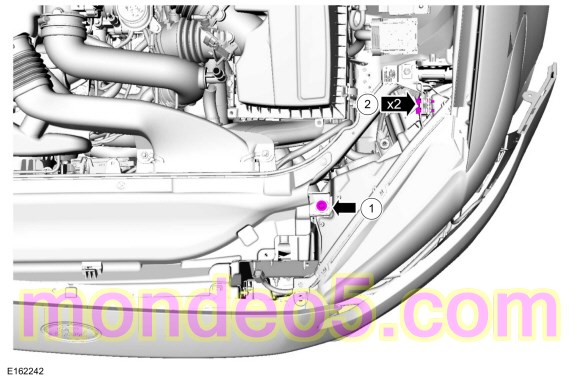

  1. Install the bolts and screw finger tight.

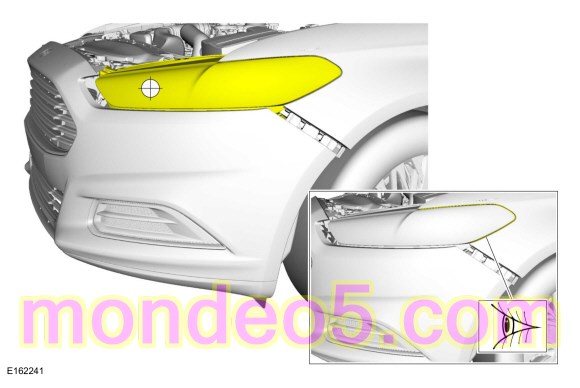

  1. Align the headlamp assembly to the fender opening.
  1. Torque :
    Headlamp mounting screw   3.6 Nm

  1. NOTE: LH only.

  1. NOTE: If equipped.

  1. Refer to: Headlamp Adjustment (417-01 Exterior Lighting, General Procedures).
