415-00C Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Sony Audio System	2013 - 2014 Fusion
Description and Operation	Procedure revision date: 06/6/2013

Information and Entertainment System - System Operation and Component Description

System Operation

Information and Entertainment System

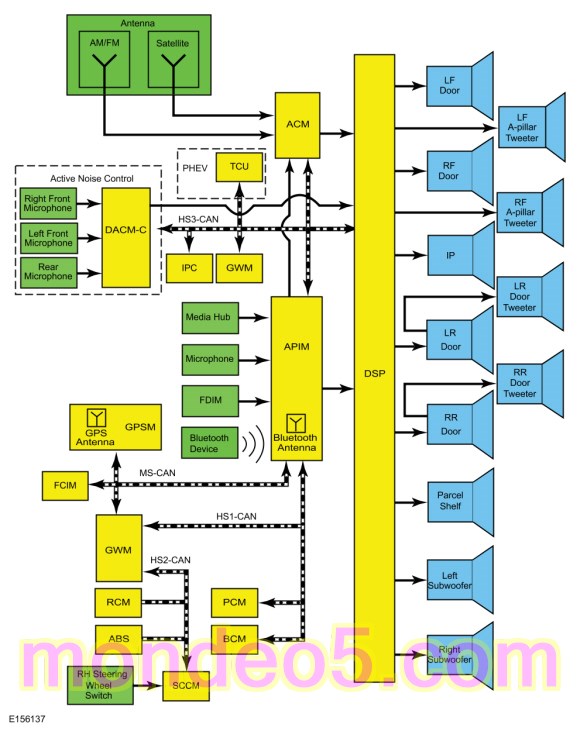

System Diagram

Network Message Chart

ACM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Audio settings	IPC	Customer audio settings that are set in the IPC .
Battery low state of charge	BCM	Used to shut down the audio system if the battery state of charge is below predetermined level.
Belt-Minder® audio mute	IPC	When this signal is active, the speaker output is muted to allow the Belt-Minder® tone to be more easily heard. This message only applies to vehicles with MyKey® enabled.
Day/night status	BCM	Used for day/night illumination status for the audio system.
FCIM button state	FCIM	Indicates when a button is pressed on the FCIM so the audio system can make the desired setting change. Ignition status BCM indicates when a button is pressed on the FCIM so the audio system can make the desired setting change.
Ignition status	BCM	Ignition RUN, START and ACCESSORY states required for the ACM operating modes and fault reporting.
MyKey® volume limit status	IPC	Used by the ACM to limit the audio system volume when a MyKey® restricted key is in use.
Vehicle configuration data	BCM	Used to verify vehicle configuration data such as VIN and system module configuration.
Steering wheel switch data	SCCM	Used for the 3 RH 2-way steering wheel switch input signals to control the redundant audio system functions.
Vehicle speed	PCM	Vehicle speed data used for speed compensated volume function.

APIM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Airbag deployment status	RCM	This message indicates air bag deployment has occurred.
Audio settings	IPC	Customer audio settings that are set in the IPC .
ACM track information	ACM	ACM sends track information to be displayed on the FDIM .
Audio volume status	FCIM	Volume request from the FCIM .
Battery/charge status	GWM	Used for the display of the battery and charging system.
DSP chime request	Audio DSP Module	Indicates when a chime request has been requested.
Day/night status	BCM	Used for day/night illumination status for the FDIM .
eCall notification	RCM	This message indicates eCall notification is being initiated due to air bag deployment.
Energy consumption display units	IPC	Used for the energy display.
FCIM bezel diagnostic status	GWM	Indicates the audio system has been put into diagnostic mode.
FCIM button state	FCIM	Indicates when a button is pressed on the FCIM so the audio system can make the desired setting change.
Gear lever position	GWM	Indicates the gear lever position so the APIM can make the desired setting change.
GPS compass direction	GPSM	Used by the turn-by-turn navigation.
GPS data	GPSM	Used for vehicle positioning, heading and direction to the APIM for navigation.
Ignition status	BCM	Ignition RUN, START and ACCESSORY states required for the APIM operating modes and fault reporting.
Language update status	IPC	Indicates the selected language so the APIM can make the desired setting change.
Life cycle mode	GWM	Used for the display of the battery and charging system.
Load shed level	IPC	This message is for requesting the APIM to enter battery load shed mode and displays a message on the FDIM .
MyKey® volume limit status	IPC	Used by the APIM to limit the audio system volume when a MyKey® restricted key is in use.
Navigation rolling wheel count and direction	ABS module	This message provides for more accurate tracking of the vehicle position when the GPS signal is temporarily unavailable for gear lever position for vehicle direction data for navigation.
Parklamp status	GWM	Used for the screen brightness of the FDIM .
Regenerated energy display	GWM	Used for the display of the battery and charging system.
Remote start status	GWM	Used to display the remote start status.
Satellite radio mode	ACM	Used to display the satellite radio modes and functions.
Satellite radio status	ACM	Used to display the satellite radio modes and functions.
Satellite radio error status	ACM	Used for the satellite radio error status.
Setpoint volume	FCIM	Used for volume adjustment setpoint from the FCIM to the FDIM .
Set volume	FCIM	Used for set volume from the FCIM to the FDIM .
Steering wheel switch data	SCCM	Used for the RH steering wheel switch input signals to operate the IPC infotainment display and SYNC® functionality.
Telematic activation request	TCU	Used to activate the telematics request.
Vehicle configuration data	BCM	Used to verify vehicle configuration data such as VIN and system module configuration.
Vehicle speed	PCM	Vehicle speed data used for navigation functionality.
Vehicle trip summary display	IPC	Used to display the trip summary.

Audio DSP Module Network Input Messages

Broadcast Message	Originating Module	Message Purpose
ACM radio functions	ACM	ACM radio functions such as current band selection.
Noise cancellation chime and status	DACMC	Used for the active noise control status.
Chime request	IPC	Used to mute the audio system so a chime from the IPC can be heard.
Belt-Minder® status	IPC	When this signal is active, the speaker output is muted to allow the Belt-Minder® tone to be more easily heard. This message only applies to vehicles with MyKey® enabled.
Ignition status	BCM	Ignition RUN, START and ACCESSORY states required for the audio DSP module operating modes and fault reporting.
MyKey® volume limit status	IPC	Used by the ACM to limit the audio system volume when a MyKey® restricted key is in use.
Setpoint volume	FCIM	Used for volume adjustment setpoint from the FCIM to the audio DSP module.
Set volume	FCIM	Used for set volume from the FCIM to the audio DSP module.
Steering wheel switch data	SCCM	Used for the RH steering wheel switch input signals to operate the audio system volume functionality.
Volume cutback	IPC	Used to reduce the volume from the audio system so a parking aid speaker chime can be heard or a warning notification from the IPC .

DACMC Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Accelerator pedal position	PCM	Used for throttle position status for the active noise control system.
Accessory delay status	PCM	Used for accessory delay status for the active noise control system.
Drivers door ajar status	BCM	Used for drivers door ajar status for the active noise control system.
Engine RPM	PCM	Engine speed data used for the active noise control system.
Hood ajar status	BCM	Used for drivers door ajar status for the active noise control system.
Ignition status	BCM	Ignition RUN, START and ACCESSORY states required for the DACMC operating modes and fault reporting.
left rear door ajar status	BCM	Used for left rear door ajar status for the active noise control system.
Luggage compartment lid ajar status	BCM	Used for luggage compartment lid status for the active noise control system.
Multimedia system ON/OFF	IPC	Used for audio system ON/OFF status for the active noise control system.
Multimedia system fault reporting status	BCM	Used for reporting fault status of audio system to the DACMC .
Passengers door ajar status	BCM	Used for passenger door ajar status for the active noise control system.
Passengers rear door ajar status	BCM	Used for passenger rear door ajar status for the active noise control system.
Selector lever (PRNDL) status	PCM	Used to verify the gear lever position for the active noise control system.

FCIM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Audio system response status	GWM	Used to indicate to the FCIM the audio system operating mode.
Day/night status	BCM	Used for day/night illumination status for the FCIM .
Ignition status	BCM	Ignition RUN, START and ACCESSORY states required for the FCIM operating modes and fault reporting.
Illumination dimming level	BCM	Controls the backlight intensity, based on the input from the dimmer switch.
Vehicle configuration data	BCM	Used to verify vehicle configuration data such as VIN and system module configuration.

GPSM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Ignition status	BCM	Ignition RUN, START and ACCESSORY states required for the GPSM operating modes and fault reporting.
Gear lever position	BCM	Used to verify the selector lever status for navigation.
Navigation rolling wheel count and direction	ABS module	Used to verify the gear lever position for vehicle direction data for navigation.
Vehicle yaw rate	ABS module	Used to verify the vehicle acceleration data for navigation.
Vehicle configuration data	BCM	Used to verify vehicle configuration data such as VIN and system module configuration.

IPC Network Input Messages

Broadcast Message	Originating Module	Message Purpose
ACM track information	ACM	Used to display track information from the ACM .
DSP chime request	Audio DSP Module	Indicates when a chime request has been requested.
Multimedia player total play time status	APIM	Used to display track information from the ACM .
Vehicle configuration data	BCM	Used to verify vehicle configuration data such as VIN and system module configuration.

TCU Network Input Messages - PHEV

Broadcast Message	Originating Module	Message Purpose
Ambient interior temperature	FCIM	Used to verify vehicle interior temperature for conditioning and to send alerts when vehicle has reached preset temperature.
Battery state of charge data	GWM	Used to verify the battery state of charge and to send alerts when vehicle has reached preset charge level, has the ability to reach a particular destination, is not charging when scheduled, or when charging stops unexpectedly.
Charge port status	GWM	Used to verify if a device is plugged into the charge inlet port. Indicates fault state if it is unknown if a device is plugged in.
Charging power type	GWM	Used to verify the type of outlet the charger is plugged into (120V or 240V).
Door status	BCM	Used to verify door latch and lock position.
GPS data	GPSM	Used for on-board navigation route planning and to indicate vehicle location.
Ignition status	BCM	OFF, ACCESSORY, RUN, and START ignition states required for TCU operating modes and fault reporting.
Remote start status	BCM	Used to indicate a remote start interruption or failure.
Vehicle configuration data	BCM	Used to verify vehicle configuration data such as the VIN and system module configuration.
Vehicle speed	PCM	Used to disable certain MyFord® Mobile features when the vehicle is in motion.

Accessory Delay Feature

The accessory delay feature allows the audio system to be operated for a preset period of time after the ignition is turned off and a front door has not been opened.

Active Noise Control

The active noise control is an audio system feature that minimizes or cancels certain low frequency engine noises within the passenger compartment. The active noise control system is integral to the audio system utilizing 3 microphones and the DACMC .

The DACMC is a digital signal processor that consists of an internal analog/digital converter and tone generator.

While the engine is running, the microphones, located in the headliner (two in the front and one in the rear), monitor the engine noise resonating in the passenger compartment. The analog signals from the microphones are processed through the analog/digital converter integral to the DACMC . The DACMC receives the vehicles engine speed from the PCM and determines the frequency to be canceled from the engine speed data and microphones input signals. The DACMC produces an opposing output frequency signal from the internal tone generator. The DACMC send the opposing output frequency signal to the audio DSP module. The audio DSP module mixes the opposing output frequency signal from the DACMC and audio signals that are from the ACM . The amplified mixed audio signal are sent to the vehicle speakers eliminating some of the low frequency engine noise.

AM / FM Radio

The AM / FM antenna receives AM and FM radio waves. The antenna module sends the radio waves to the ACM through the AM / FM antenna cable. The ACM powers the AM / FM antenna to amplify the AM signal.

For vehicles without active noise control, the ACM converts the radio waves to a fluctuating AC output voltage to the system speakers.

For vehicles with active noise control, the ACM converts the radio waves to a fluctuating AC output voltage to the DACMC . Three noise cancellation microphones, located in the vehicle, measure the amplitude and phase of the engine noise and sends it to the DACMC . The DACMC receives engine speed data and calculates the targeted frequency that needs to be cancelled. The DACMC outputs the engine noise cancellation frequency and fluctuating AC output voltage to the system speakers.

APIM Programming

The APIM for this vehicle requires specific programming procedures for correct operation. APIM programming is required when:

APIM is replaced
- Programming is required when the APIM is replaced.
Directed by a TSB
- Updates to resolve SYNC® performance concerns can only be performed when directed by a TSB .
Upgrades are requested
- Occasional upgrades and/or new applications can be programmed when they become available. This type of programming is available upon customer request and expense.

There are 3 types of APIM programming available:

Module Replacement — used when the APIM has been replaced. This type of programming performs the required provisioning for the software installation.
Standard — used to update the APIM and any currently installed applications to the latest software level.
Custom — shows all available software options (including applications that may not have been previously installed) that can be programmed into the APIM . Use this selection when upgrades become available or as directed by a TSB .

There are 3 types of software installation methods available depending on the type of programming selected:

Full Flash/Force Customer Interface Processor (CIP) — a Customer Interface Processor (CIP) program is the entire software package for the APIM . Performing a Full Flash erases the existing APIM software and installs the complete program. A Full Flash should only be performed if a Service Pack is not available. If a Full Flash is performed, all applications must be re-installed. Performing a Full Flash by selecting Force Customer Interface Processor (CIP) requires additional programming time and is not necessary unless directed by a TSB .
Service Pack — a Service Pack update only provides the necessary software to update the existing APIM program to a new level. For example, a Service Pack would change the software program from an "AA" to an "AB" version level. It does not delete or overwrite the existing APIM software. A Service Pack is a much smaller program than a Full Flash and requires less downloading and programming time. A Service Pack software installation should always be performed instead of a Full Flash, if possible.
Applications — applications are special software programs that may be installed on the APIM . Applications necessary for each vehicle are determined by the vehicle build information stored in the Ford online database. Selecting individual applications for installation may not be necessary every time the APIM is programmed.

NOTE: Vehicle Interface Processor (VIP) programming is not selectable because the Vehicle Interface Processor (VIP) is configured automatically during programming.

There are some general programming guidelines that are applicable to multiple types of programming:

Full Flash/Force Customer Interface Processor (CIP)
- The scan tool, along with the SYNC® Re-Flash Kit (or equivalent) are required to complete the flash procedure.
- All previously paired phones are deleted from the SYNC® system.
- The file needs to be downloaded from the Ford online database. Allow for extra time in order to complete the download. The compressed files are between 200 and 400 megabytes (MB), and once downloaded will be extracted to the full size of approximately 2 GB.
- Once scan tool programming is complete, applications need to be installed with the USB flash drive. This should be accomplished by connecting the USB flash drive to the media hub.
Service Pack and Applications
- A USB flash drive with a minimum 1 gigabyte (GB) storage capacity is required.
- The file is downloaded from the Ford online database onto the flash drive. The files are then transferred via the flash drive to the APIM through the vehicle USB port.

To perform module replacement programming,
Refer to: SYNC Module [APIM] Replacement Programming (415-00C Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Sony Audio System, General Procedures).

To perform standard programming,
Refer to: SYNC Module [APIM] Standard Programming (415-00C Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Sony Audio System, General Procedures).

To perform custom programming,
Refer to: SYNC Module [APIM] Custom Programming (415-00C Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Sony Audio System, General Procedures).

Audible Prompts

The APIM receives both stereo and mono sound inputs, and can also transmit both stereo and mono sound. The mono function is used to receive the microphone input. It is also used to send sound to the ACM for voice prompts, the Text-To-Speech (TTS) feature, ringtones, and any audio received through a connected mobile phone. The Text-To-Speech (TTS) feature speaks information so that it does not have to be read from the display.

Audio DSP Module

The Sony® audio system provides theatre quality sound in the vehicle. Audio signals are sent from the ACM to the audio DSP module, which processes the audio signals and sends them to the speakers.

The audio DSP module determines the correct audio environment based on the audio signals it receives and on the network messages it receives from other audio system modules. These messages include such information as fade/balance and speed sensitive volume settings.

The audio DSP modules enabled through software.

In the event of an overload, the audio DSP module clips the audio output signal to the speakers and subwoofer (heard as distortion) in order to prevent damage to the speakers.

Audio Extended Play Mode

The audio extended play mode is a feature that enables the audio system after the ignition is off and any door has been opened. When the power button on the FCIM is pressed, the audio system functionality is restored and remains active for a predetermined time. To turn the audio system off, the power button on the FCIM is pressed. The audio extended play mode will be disabled if the battery saver function is enabled.

Battery Load Shed

The BCM uses the battery current sensor to keep track of the battery state of charge. The battery current sensor is a Hall-effect sensor attached to the battery ground cable. When the engine is off, and the BCM determines the battery state of charge is below 40%, 10% of the charge has been drained or 45 minutes have elapsed, a load shed message is sent over the CAN . This message turns off the audio/navigation system to save the remaining battery charge. Under this condition, SYS OFF TO SAVE BATT is displayed on the centerstack infotainment display to notify the driver that battery protection actions are active.

Engine off load shed occurs when the engine is not running, and the ignition is in the ACC or RUN position. To clear the load shed state, restart the engine.

Bluetooth Mode

Bluetooth is a secure, short-range radio frequency that allows devices to communicate wirelessly through radio waves. The operating range of a Bluetooth signal is a maximum of 9.75 m (32 ft.).

The Bluetooth interface can accommodate both Bluetooth-enabled mobile phones and Bluetooth-enabled media devices. The SYNC® system allows interaction with several types of customer Bluetooth devices, including mobile phones and media devices. The APIM contains an on-board Bluetooth-chipset, which enables certain wireless devices to interact with the system. Any Bluetooth device used with the SYNC® system must first be paired with the system before it is operational.

Only one Bluetooth phone and one Bluetooth media device can be connected to the system at any one time. If an additional device of either type is paired with the system and made active, the APIM disconnects any active connection and establishes a connection with the new device.

When a new Bluetooth device is added, the APIM and the Bluetooth device must be paired together. Most Bluetooth devices can pair with the SYNC® system, although functionality may vary. To determine if a Bluetooth device is supported, verify the customer device is on the compatibility list for the current APIM software level.

Pairing a Bluetooth device is accomplished through the "Add Device" selection of the phone menu. When pairing a device, the SYNC® system generates a unique PIN that must be entered on the Bluetooth device in order for the pairing process to be successful. There are also some device-specific actions that must take place. For information on the pairing process, refer to the Owner's Literature.

It is important to understand that not all mobile phones have the same level of features when interacting with the SYNC® system. For a list of compatible phones, refer to the SYNC® MyRide website.

Composite Audio-Video Input Mode

The composite audio and video inputs consist of the RCA jack connections that are used for playing video or audio content from an external device (such as a gaming system). The media hub contains an internal composite audio/video translator connected to the external RCA jacks, which output video and audio signals to the APIM via a shielded audio and video harness.

High Definition (HD) Radio®

High Definition (HD) Radio® is a free to public digital radio broadcast. Radio stations transmit digital AM and FM audio and data (such as station call letters, artist, and title). High Definition (HD) Radio® channels duplicate analog channels; in addition, some High Definition (HD) Radio® channels subdivide (multicast) the digital signal into multiple channels that do not have analog equivalents.

MyFord® Mobile - PHEV

The MyFord® Mobile system uses the TCU to provide remote connectivity through the MyFord® Mobile website and mobile phone application to monitor and perform key vehicle functions such as:

Active alarm mode control
Battery state of charge and range
Charge settings, scheduling, logs, trends, and control
Charge station locator
Remote alerts and notifications
Remote start control
Temperature conditioning for vehicle interior and battery
Trip planner and information
Vehicle locator
Vehicle lock/unlock control
Vehicle status information

MyKey® Audio Operation

When a MyKey® is in use:

the audio system is muted whenever the Belt-Minder® is activated until the safety belts are buckled.
the satellite radio adult content stations are restricted.
the 911 assist and do not disturb feature are enabled and cannot be disabled.

The MyKey® also has an optional setting that limits the audio system volume. The maximum volume of the audio system is limited to 45%. In an attempt to exceed the limited volume, the MyKey® VOLUME LIMITED message is displayed in the centerstack infotainment display. The speed compensated volume feature will be disabled.

Refer to the Owner's Literature for information on MyKey®.

Navigation

The navigation system guides the user to a pre-entered destination. Map data is read from the map data SD card plugged into the media hub. The APIM calculates route information based on GPS data received by the GPSM . The APIM also uses vehicle speed and transmission gear selected signals received through the network to detect vehicle speed and direction, resulting in more accurate navigation tracking. The navigation display is shown on the FDIM .

The compass heading is derived from the GPS antenna signal. There are no serviceable parts for the compass.

The voice recognition system allows the user to interface with the system without using the touchscreen. A microphone located in the headliner provides a direct input to the APIM .

Satellite Radio

The satellite antenna receives digital signals and sends them to the ACM through the satellite radio antenna cable. The satellite radio receiver is built into the ACM .

SD Card Audio Mode

The SD card slot can be used for playing audio content that is stored on the SD card.

SD Card Video Mode

The SD card slot has the capability to view photos stored on memory SD cards and display them on the FDIM .

SIRIUS® Data Services

The satellite radio system has SIRIUS® data services that are separate subscription services which are received through the satellite receiver. The data services include periodic updates for:

Traffic
Movies
Weather
Gas prices
Sports score tracking

Some services may be available separately while others are only available as packages.

Speed Compensated Volume

The audio DSP module adjusts the audio system volume to compensate for speed and wind noise based on the VSS signal that is messaged from the PCM .

Steering Wheel Switch Function

The RH steering wheel switch consists of an integrated 5-way upper switch and three 2-way toggle lower switches. The 5-way steering wheel switch operates the IPC infotainment display. The three 2-way toggle steering wheel switches operate the audio system functions including SYNC®.

SYNC® System

The SYNC® system is a hands-free communication and entertainment system that supports many features. All features are not available with every phone.

The SYNC® system provides the ability to:

Connect media devices (such as an iPod® or USB device) in order to play audio files.
Control the entertainment system, climate control system, ambient lighting system, and several other vehicle systems using the touchscreen or voice controls.
Initiate an emergency call (911 Assist™) when the airbags deploy.
Play media files via a paired Bluetooth-enabled audio device.
Produce vehicle health reports.
Provide turn-by-turn traffic directions
Send and receive phone calls via a paired Bluetooth-enabled phone.
Send and receive text messages via a paired Bluetooth-enabled phone.
Wi-Fi signal receiver for in-car Internet access (requires customer-supplied USB modem).

Refer to the Owner's Literature for information on SYNC®.

SYNC® Traffic, Directions and Information

The SYNC® traffic, directions and information service is a subscription-based service that includes precise turn-by-turn directions, personalized real-time traffic updates with text alerts, business search, entertainment, news, sports, stocks, travel and weather. The customers mobile phone is used to access and download the SYNC® services. The GPS antenna, that is integral to the GPSM , is used to detect the location and direction of the vehicle. For traffic, directions and information services subscription, refer to the SYNC® MyRide website.

USB Mode

The USB port can be used for connecting a media device (such as an iPod®) with the device's available cable, or for directly plugging in a portable mass storage device, such as a thumb drive. When playing media files stored on a mass storage device, the SYNC® system only plays files that do not have Digital Rights Management (DRM) protection. The USB port can also be used for uploading vehicle Application upgrades. The USB port is powered by the APIM , so no external power source is needed to power a device plugged into the USB port if the device supports this feature.

In addition to audio information, metadata (information such as artist, album title, song title, and genre) may also be sent to the APIM from a device plugged into the USB port. The APIM uses the metadata to create indexes that can be used to sort for particular music, based on customer preference. Not all USB devices can send metadata to the APIM . When a new media device is connected to the SYNC® system, the APIM automatically indexes the information. This may take several minutes (depending on the amount of data on the device), and is considered normal operation. When a device that was previously connected to the SYNC® system is reconnected, the APIM updates the index (rather than creating a new one), which reduces the amount of time needed to index the device.

Image files can be saved to the APIM from a USB device. These images can be displayed on the FDIM as wallpaper backgrounds.

Voice Recognition

Voice recognition is used for many vehicle functions, including audio system and climate controls. The microphone relays the microphone input to the APIM through dedicated wiring. The Text-To-Speech (TTS) and voice prompt features speak certain text information and interaction requests to minimize driver distraction by having to look at the audio system display while driving. The ringtone alerts the driver to an incoming call. The microphone is also used to detect outgoing audio during a phone call.

Audible prompts can range from a simple tone to more elaborate spoken text, based on the customer setting. When interaction mode is set to standard, detailed guidance is provided. When interaction mode is set to advanced, most prompts are tones only and minimal audible guidance is provided. Refer to the Owner's Literature for information on voice interaction.

The audio signals for the Text-To-Speech (TTS) and voice prompt features, the ringtones, and audio from the outside device during a phone call, are sent from the APIM to the audio DSP module.

Component Description

ACM

The ACM can be operated with the ignition in RUN or ACC. The accessory delay feature allows the audio system to be operated for a preset period of time after the ignition is turned off and a front door has not been opened. The ACM requires Programmable Module Installation (PMI) when it is replaced.

The ACM provides the audio signals to the audio DSP module.

Antenna

The AM/FM antenna has an integrated antenna module that is powered by the ACM to improve AM/FM reception. If the vehicle is equipped with satellite radio, the satellite antenna is integrated into the roof-mounted antenna module.

APIM

The APIM consists of 2 internal modules: the Customer Interface Processor (CIP) and the Vehicle Interface Processor (VIP). These modules are not replaceable individually, but can be flashed independently, if required.

The Customer Interface Processor (CIP) interfaces with all of the inputs to the APIM . It contains an analog-to-digital-to analog converter, as well as the Bluetooth chipset. Any application upgrades that are available to the consumer are loaded directly to the Customer Interface Processor (CIP) through the USB port.

The Vehicle Interface Processor (VIP) provides an interface between the Customer Interface Processor (CIP) and the vehicle. Its main functions are controlling the APIM power management and translating both inbound and outbound signals. In addition, the Vehicle Interface Processor (VIP) queries the modules on the network to retrieve any Diagnostic Trouble Codes (DTCs) when a vehicle health report is requested.

Audio DSP Module

The audio DSP module enhances the input audio signal sound quality from the ACM . The audio DSP module requires Programmable Module Installation (PMI) when it is replaced. The audio DSP module provides the enhanced audio signals to the speakers.

DACMC

The DACMC can be operated with the ignition in RUN or ACC. The DACMC receives engine noise data and noise cancellation microphone signals from the passenger compartment. The DACMC filters out the engine noise within the passenger compartment. The DACMC requires Programmable Module Installation (PMI) when it is replaced.

For vehicles with active noise control, the audio DSP module receives audio signals from the ACM and the opposing output frequency signal from the DACMC to eliminate some of the low frequency engine noise. The audio DSP module provides the enhanced audio signals to the speakers.

FCIM

The FCIM is one of the customer interfaces to the audio system and the HVAC module. It is separate from the ACM .

FDIM

The FDIM provides for customer interaction through the touchscreen display. The FDIM plugs directly into the APIM , and therefore does not communicate directly on any network and no external circuits are connected.

GPSM

The GPSM provides vehicle location for real-time traffic reports and re-routing, and for identifying vehicle location in the event of a collision.

For vehicles with navigation, the GPSM acts as the antenna for the navigation system.

The vehicle location information is broadcast to the APIM .

Media Hub

The media hub allows for various audio and video devices to be played through the vehicle speakers and viewed in the FDIM display.

The media hub receives inputs from:

2 USB ports
1 SD card slot
1 set of component RCA jacks

Microphone

The microphone receives the voice command and sends a signal to the APIM . The microphone is also used to detect outgoing audio during a phone call and voice command for the SYNC® system.

Noise Cancellation Microphones

The three microphones (two in the front of the headliner and one in the rear) measure the amplitude and phase of the engine noise and inside the passenger compartment and sends it to the DACMC .

Steering Wheel Switches

The RH steering wheel switch consists of a series of resistors. Each steering wheel switch function corresponds with a specific resistance value within the switch. The SCCM sends out a 5-volt reference voltage to the RH steering wheel switch on the input circuits and monitors the voltage drop when a button is pressed. The voltage drop varies depending upon the resistance of the specific button pressed, providing indication to the SCCM which switch is pressed.

TCU - PHEV

The TCU uses a non-serviceable internal SIM card to connect to a mobile phone network in order to send and receive data. When a subscription is active, the SIM card is associated with the Electronic Serial Number (ESN) of the TCU , and the TCU Electronic Serial Number (ESN) is associated with the VIN . As a result, the TCU cannot be swapped from one vehicle to another. The TCU relies upon network messages to gather and send information and to perform certain functions based upon remote commands from the mobile phone application or MyFord® Mobile website. The TCU requires PMI when it is replaced.
