Side Obstacle Detection Control Module

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The LH side is shown, the RH side is similar.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

   If using the IDS scan tool, make sure the software level is at 73.02 or higher. Upload the module configuration information from the SODL or SODR into the diagnostic scan tool by following the diagnostic scan tool on screen instructions. For additional information,
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).


1. Remove the rear wheel and tire assembly.
   Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).


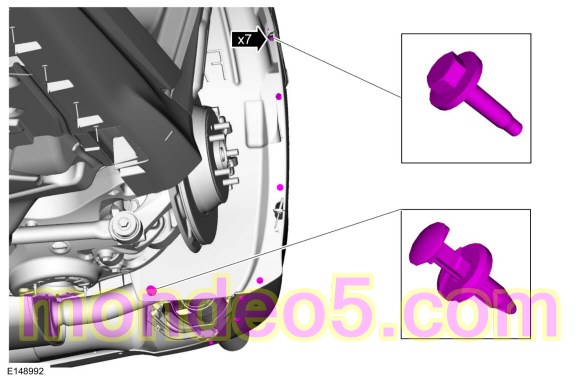

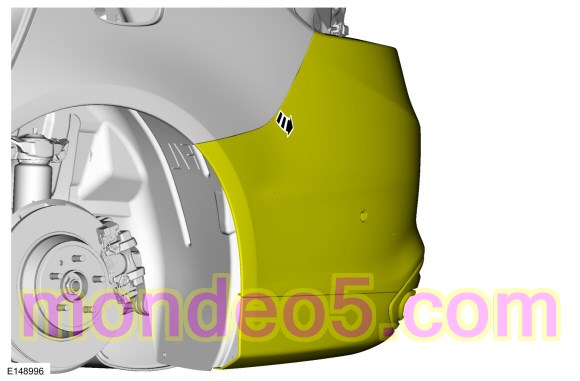

1. On each side.

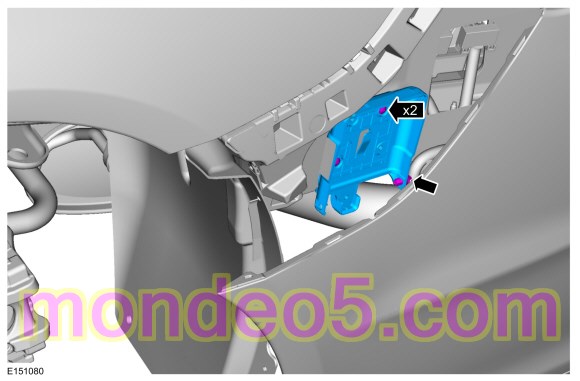

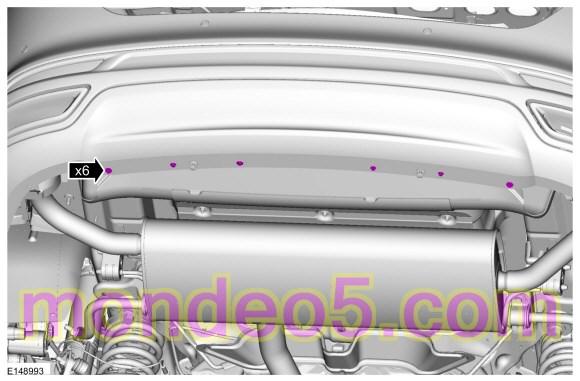

   Torque : 1.5 Nm

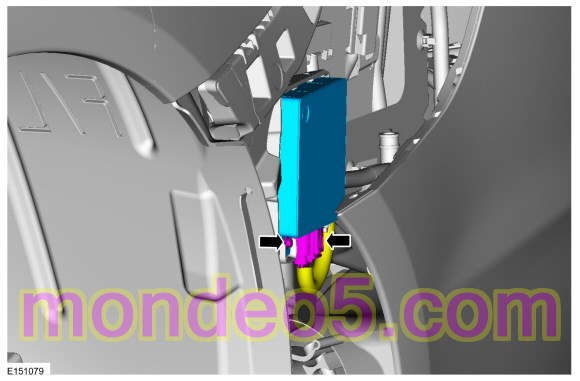

1. Torque : 1.5 Nm

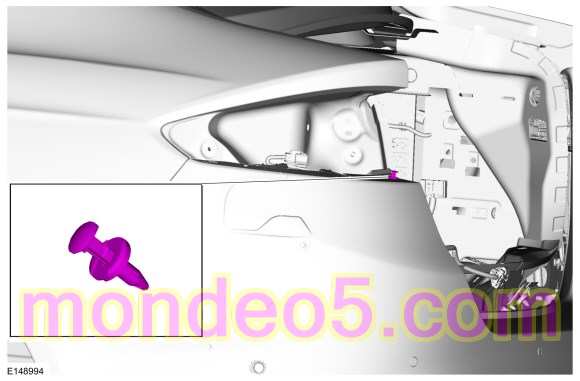

1. Refer to: Rear Lamp Assembly - Vehicles With: 4-Door (417-01 Exterior Lighting, Removal and Installation).


Installation

1. To install, reverse the removal procedure.
