204-00 Suspension System - General Information 2013 - 2014 Fusion
General Procedures Procedure revision date: 07/15/2013

Front Toe Adjustment

NOTE: Make sure that the vehicle is standing on a level surface.

  1. Steering wheel in straight ahead position.
  1. Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides.
    General Equipment : Wheel Alignment System
    1. On both sides.
    1. On both sides.
      Torque : 70 Nm

    1. NOTE: Make sure that the boot is correctly located.

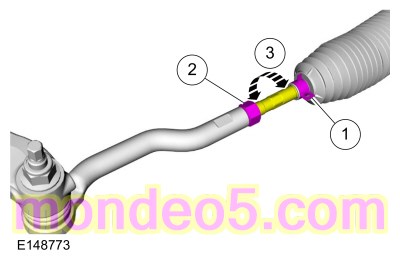

      Rotate the inner tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.

  1. NOTE: If equipped with Lane Departure Warning (LDW) System, camera alignment is required for the lane keeping alert and lane keeping aid to function correctly.

    Connect the scan tool and perform the IPMA camera alignment procedure. Follow the scan tool directions.
