501-08 Exterior Trim and Ornamentation 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 11/20/2012

Luggage Compartment Lid Moulding

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Reversing Lamp (417-01 Exterior Lighting, Removal and Installation).

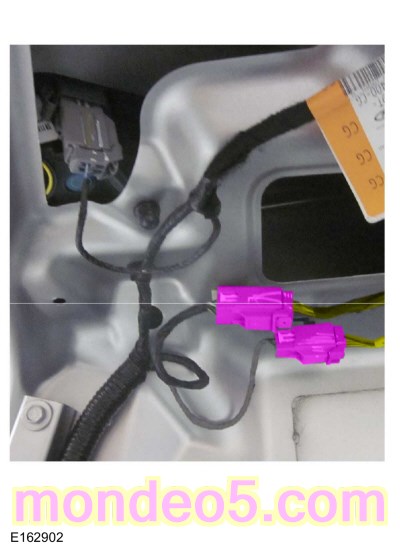

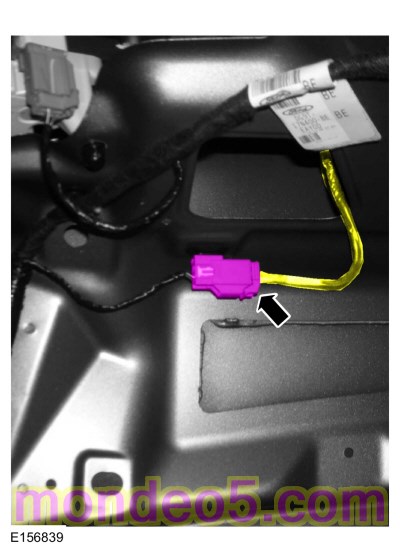

  1. NOTE: If equipped with parking aid camera.

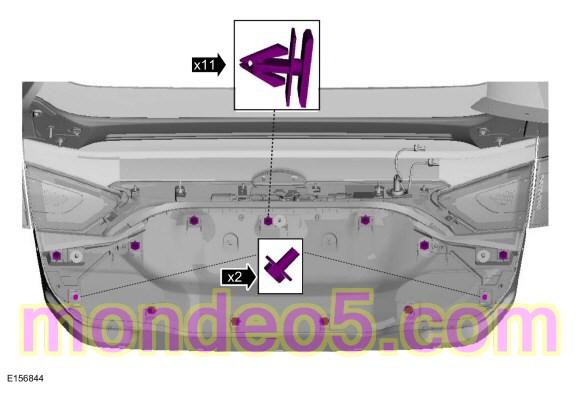

  1. Torque : 4.1 Nm
  1. Torque : 2.1 Nm

Installation

  1. To install, reverse the removal procedure.
