413-13A Parking Aid	2013 - 2014 Fusion
Description and Operation	Procedure revision date: 08/29/2012

Parking Aid - System Operation and Component Description

System Operation

Parking Aid - Audible

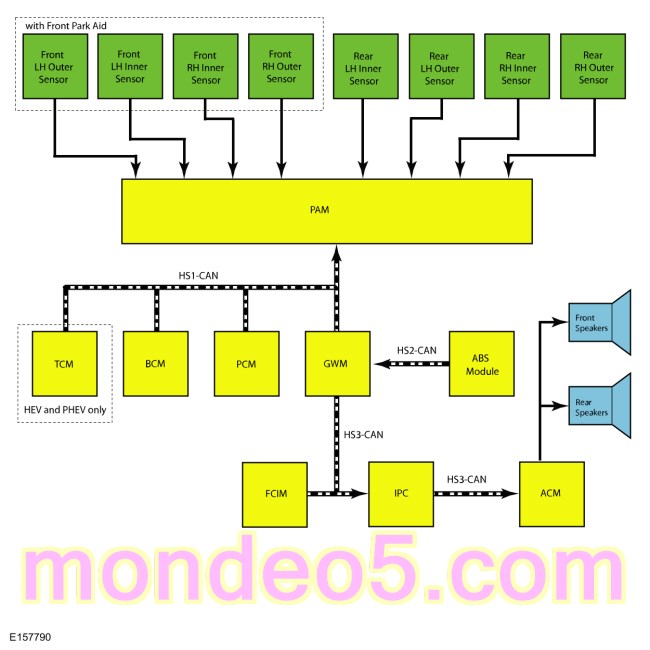

System Diagram

Audible Parking Aid

Network Message Chart

Parking Aid Module (PAM) Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Ignition key type	BCM	Used to disable the parking aid menus if a MyKey® is in use
Outside air temperature	FCIM	Used to temperature compensate the parking aid sensors
Power mode	BCM	Used to communicate the ignition switch state.
Parking aid enable status	IPC	Used to enable or disable the front or rear parking aid.
Selector lever (PRNDL) status ( HEV only)	TCM	Used to enable the parking aid when the transmission selector is in REVERSE on hybrid vehicles.
Selector lever (PRNDL) status (except HEV )	PCM	Used to enable the parking aid when the transmission selector is in REVERSE.
Wheel rotation data	ABS module	Used to disable and enable the parking aid system based on vehicle speed.

IPC Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Parking aid chime request	Parking Aid Module (PAM)	Used to command parking aid warning tones through the audio system speakers.

Audible Parking Aid System Operation

The Parking Aid Module (PAM) calculates the distance to an object within a 170 degree semicircular area (azimuth) around the front and/or rear of the vehicle. When an object is detected by the front or rear parking aid system, a variable rate warning tone is sounded through the corresponding audio system speakers (front or rear door speakers).

The rear parking aid system calculates the distance to an object around the rear of the vehicle using 4 ultrasonic sensors. The rear parking aid sensors detect objects approximately 1,524 mm (60 in) from the rear of the vehicle, 508 mm (20 in) from the rear side of the vehicle, and 305 mm (12 in) above the ground. To detect objects behind the vehicle, the Parking Aid Module (PAM) supplies voltage and ground to the rear ultrasonic sensors while monitoring a signal return circuit from each sensor. The 4 rear sensors share common voltage and ground circuits.

This vehicle may also be equipped with a front parking aid system. The front parking aid system calculates the distance to an object around the front of the vehicle using 4 ultrasonic sensors. The front parking aid sensors detect objects approximately 686 mm (27 in) from the front of the vehicle, 457 mm (18 in) from the front side of the vehicle, 305 mm (12 in) above the ground. To detect objects in front of the vehicle, the Parking Aid Module (PAM) supplies voltage and ground to the front ultrasonic sensors while monitoring a signal return circuit from each sensor. The 4 front sensors share common voltage and ground circuits.

Only objects that reflect a sufficient amount of sound waves are detected by the front or rear parking aid sensors. The surface properties, size and composition an object can affect the ability of the parking aid system to detect the object. Incorrect sensor alignment or installation, dirt or ice covered sensors, heavy rain and snow can also cause objects not to be detected.

Parking Aid Audible Alert

The parking aid audible tones are sounded through the audio system speakers. Audio system volume is automatically reduced when a parking aid alert tone is sounded. The audio speaker increases its warning tone rate as the vehicle gets closer to an obstacle. When an object is detected within 305 mm (12 in) of the sensors, the warning tone becomes continuous. Objects to the rear side generate a continuous tone for only 3 seconds if the object is stationary or receding from the vehicle. The warning tones are prioritized to the system (front or rear) which has detected an object closest to the bumper. The tone will alternate between front and rear audio speakers if objects are detected closer than 254 mm (10 in) front and rear.

Parking Aid - Video

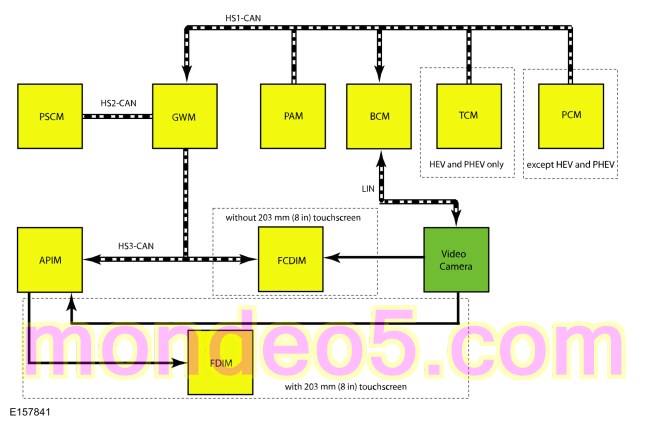

System Diagram

Network Message Chart

BCM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Camera commands (vehicles with 203 mm (8 in) touchscreen)	APIM	Used to command the static and active guidelines status and zoom level
Camera commands (vehicles without 203 mm (8 in) touchscreen)	FCDIM	Used to command the static and active guidelines status and zoom level
Parking aid range to object	Parking Aid Module (PAM)	Used to highlight the zone where an object is detected.
Selector lever (PRNDL) status ( HEV and PHEV only)	TCM	Used to enable and disable the rear video display on hybrid vehicles.
Selector lever (PRNDL) status (except HEV and PHEV )	PCM	Used to enable and disable the rear video display.
Steering angle status	PSCM	Used to create the vehicle intended path on video display.

Accessory Protocol Interface Module (APIM) Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Backup camera status	BCM	Used to display the video status for static and active guidelines and zoom level.

Image Display

The decklid must remain closed for correct operation of the video camera system.

The video camera system has 5 user-selectable features:

Fixed guidelines — assists the driver with aligning the vehicle with an object.
Active guidelines — displays the intended path of the vehicle based upon steering wheel input.
Visual park aid alert — assists the driver to visually see the object causing the parking aid system to sound.
Manual zoom — assists the driver with connecting or towing a trailer allowing the driver to manually zoom closer to an object behind the vehicle.
Video camera delay — allows the driver to see the image behind the vehicle after the vehicle is shifted out of REVERSE. The image will not be displayed if the vehicle is shifted into PARK.

On vehicles equipped with the 203 mm (8 in) touchscreen, the camera commands controlled by the driver are generated at the FDIM which is hardwired to the APIM . On vehicles not equipped with a 203 mm (8 in) touchscreen, the camera commands controlled by the driver are generated at the FCDIM . The camera commands are then sent to the BCM . The BCM sends the command to the video camera via the LIN circuit. On vehicles equipped with a 203 mm (8 in) touchscreen, the video camera outputs the video signal to the APIM , which is directly connected to the FDIM , which displays the image. On vehicles not equipped with a 203 mm (8 in) touchscreen, the video camera outputs the video signal to the FCDIM , which displays the image.

The BCM and the video camera communicate via a LIN circuit which is a dedicated single wire communication network.

The messages sent from the BCM to the video camera are:

Transmission in reverse
Decklid ajar status
Camera configuration data
Display manual zoom request
Parking aid audible warning status
Parking aid sensor distance to object data

The messages sent from the video camera to the BCM are:

Camera status
Display zoom status
Camera part number data
Visual park aid alert status
Fixed guideline status

Visual Park Aid

The visual park aid alert feature utilizes the rear parking aid sensor inputs from the Parking Aid Module (PAM) and the video camera image. When the transmission selector is in REVERSE and an object is detected by a rear parking aid sensor, parking aid range to object data is sent from the Parking Aid Module (PAM) through the BCM to the video camera.

The visual alerts are red, yellow or green and appear as highlights on top of the displayed image to indicate in which zone the object is detected. If the visual park aid alert feature is enabled, the highlighted visual alerts are still operational even if the parking aid system has been disabled by the driver.

Fixed Guidelines

NOTE: The color-coded lines cannot indicate accurate or consistent distances between objects located behind the vehicle and at the rear of the vehicle. This normal condition is due to variances in vehicle ride height, including, but not limited to, vehicle loading.

The video camera fixed guidelines feature displays guidelines on top of the video image to assist the driver with alignment of the vehicle. A dashed line on the displayed image represents the center of the vehicle and 3 color-coded lines (red, yellow, green) identify different zones between the rear of the vehicle and objects.

Active Guidelines

The video camera active guidelines feature displays guidelines on top of the video image to assist the driver with maneuvering a vehicle into a space. Active guidelines are not shown when the steering wheel is straight.

Manual Zoom

The manual zoom feature is controlled by the video camera. The manual zoom feature has 3 zoom levels that are only active when the vehicle is in REVERSE. If the manual zoom feature is enabled and the vehicle is shifted out of REVERSE the manual zoom feature is disabled. The manual zoom feature must be re-enabled the next time the vehicle is shifted into REVERSE.

Video Delay

When the video delay is turned on, the video image remains displayed after the transmission is shifted out of REVERSE, into any gear other than PARK, until the vehicle speed reaches 8 km/h (5 mph). With the delay off (default), the image displays until the transmission is shifted out of REVERSE.

Component Description

Parking Aid Sensors

The parking aid sensors are wide beam ultrasonic sensors. The sensors continuously send out ultrasonic signals to detect objects and communicate the information back to the Parking Aid Module (PAM).

Only objects which reflect enough sound waves are detected by the sensors. This varies due to the shape, surface properties and size of objects being detected. Incorrect sensor alignment, dirt covered sensors, heavy rain and snow can cause objects not to be recognized.

Parking Aid Module (PAM)

The Parking Aid Module (PAM) calculates and reports (via audio system tones) the distance between the front or rear bumper of the vehicle and an object. The Parking Aid Module (PAM) is integral to the BCM and requires Programmable Module Installation (PMI) when replaced.

Video Camera

The rear video camera system is active with the ignition in RUN and the transmission selector in REVERSE. The video camera receives commands and sends status over a dedicated LIN to the BCM . After replacement, the video camera must be configured through the BCM using a diagnostic scan tool.
