Instrument Panel Cluster (IPC)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. NOTE: If installing a new IPC , it is necessary to upload the module configuration information to the scan tool prior to removing the IPC . This information must be downloaded into the new IPC after installation.

   Upload the module configuration information from the IPC into the scan tool by following the scan tool on screen instructions. Record the odometer value from the original IPC . If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.


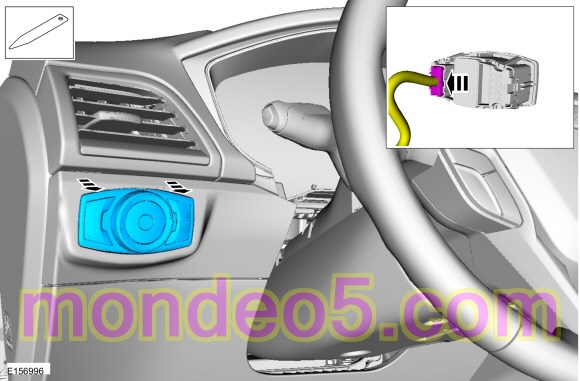

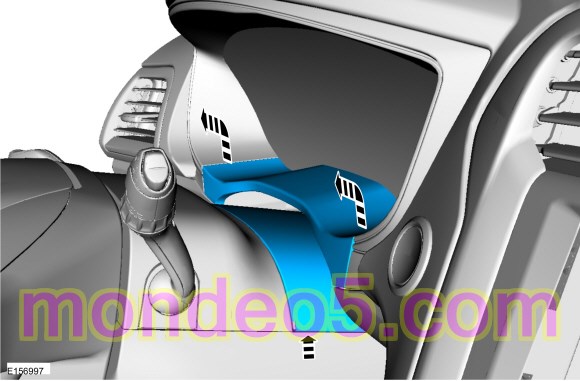

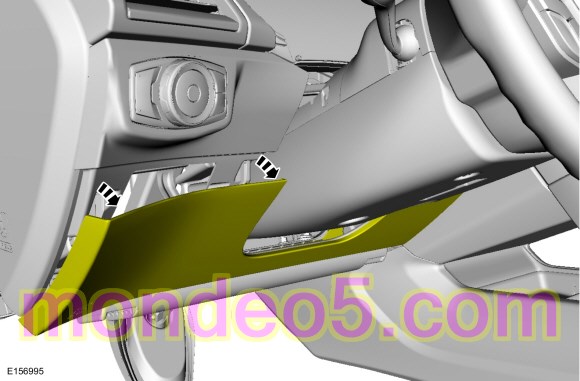

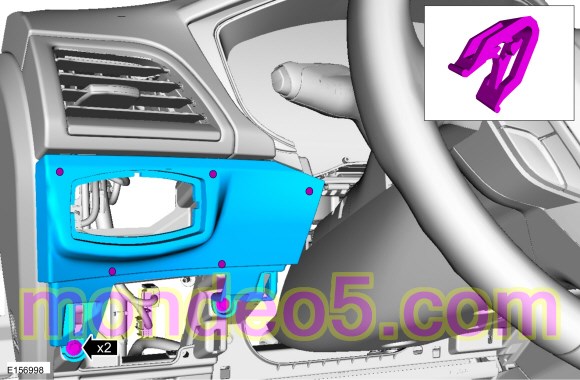

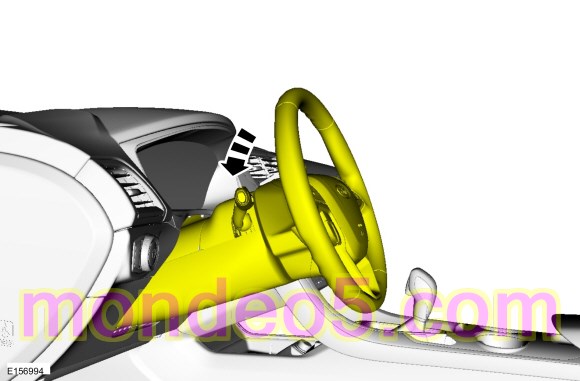

1. Torque : 2.5 Nm

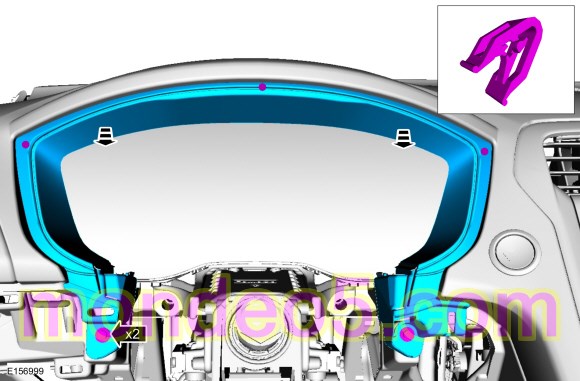

1. Torque : 2.5 Nm

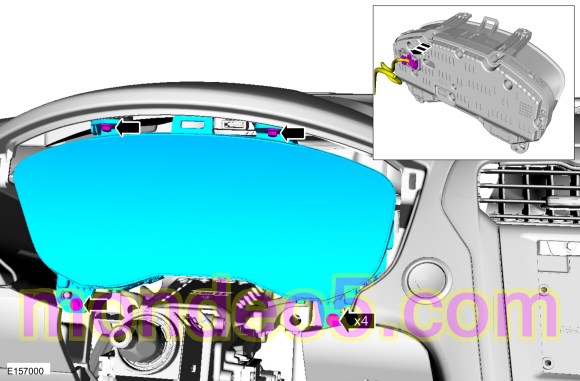

1. Torque : 3 Nm

Installation

1. To install, reverse the removal procedure.


1. If a new module had been installed, download the IPC configuration information from the scan tool to the new IPC by following the scan tool on screen instructions.
