501-12 Instrument Panel and Console	2013 - 2014 Fusion
Removal and Installation	Procedure revision date: 04/17/2013

Overhead Console

Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

- Open the storage compartment.

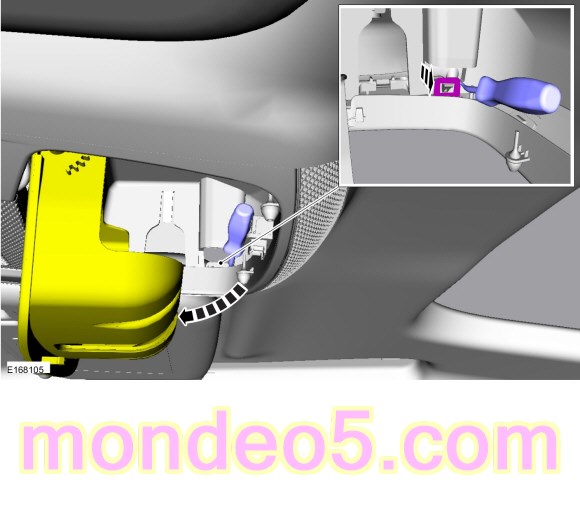

- Push upwards on the rear of the console, use a 90 degree pick tool and release the RH and LH rear console clips.

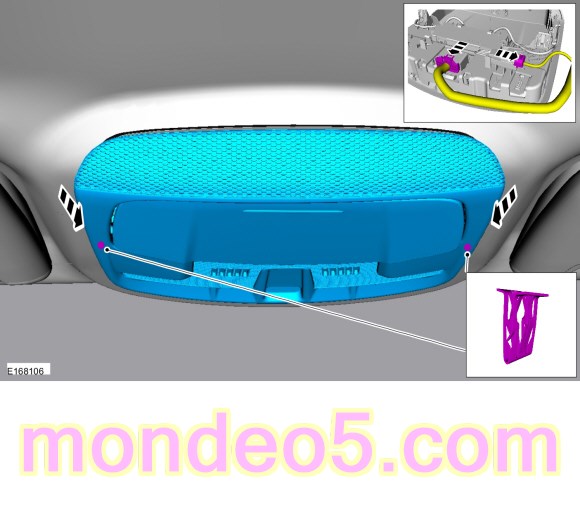

- Pull downwards on each side of the console to release the spring clips.
- Disconnect the electrical connectors.

Installation

To install, reverse the removal procedure.
